2020 China New Design Laser Cutter - Hot Sale BiGa ZNC 450 High Quality Taiwan CTEK control Die Sinking Machine/ Die Sinker Electronic Discharge Machine EDM – BiGa Detail:

EDM is also known as electric spark machining/electric discharge machine. It’s a direct utilization of electrical energy and heat processing technology. It is based on during the spark discharge between the tool and the workpiece for removing excess metal in order to achieve the dimension, shape and surface quality of the predetermined processing requirements.

Spec/Model	Bica 450 EDM	Bica 540 EDM	Bica 750 EDM
Spec/Model	ZNC	ZNC	ZNC
Control of Z axis	CNC	CNC	CNC
size of work table	700*400 mm	800*400 mm	1050*600 mm
Travel of X axis	450 mm	500 mm	700 mm
Travel of Y axis	350 mm	400 mm	500 mm
Machine head stroke	200 mm	200 mm	250 mm
Max. table to quill distance	450 mm	580mm	850 mm
Max. weight of work piece	1200 kg	1500 kg	2000 kg
Max. electrode load	120 kg	150 kg	200 kg
Work tank size (LWH)	1130710450 mm	1300720475 mm	16501100630 mm
Fliter box capacity	400 L	460 L	980 L
Fliter box net weight	150 kg	180 kg	300 kg
Max. output current	50 A	75 A	75 A
Max. machining speed	400 m³/min	800 m³/min	800 m³/min
Electrode wear ratio	0.2%A	0.25%A	0.25%A
Best surface finishing	0.2 RAum	0.2 RAum	0.2 RAum
Input power	380V	380V	380V
output voltage	280 V	280 V	280 V
Controller weight	350 kg	350 kg	350 kg
controller	Taiwan CTEK	Taiwan CTEK	Taiwan CTEK

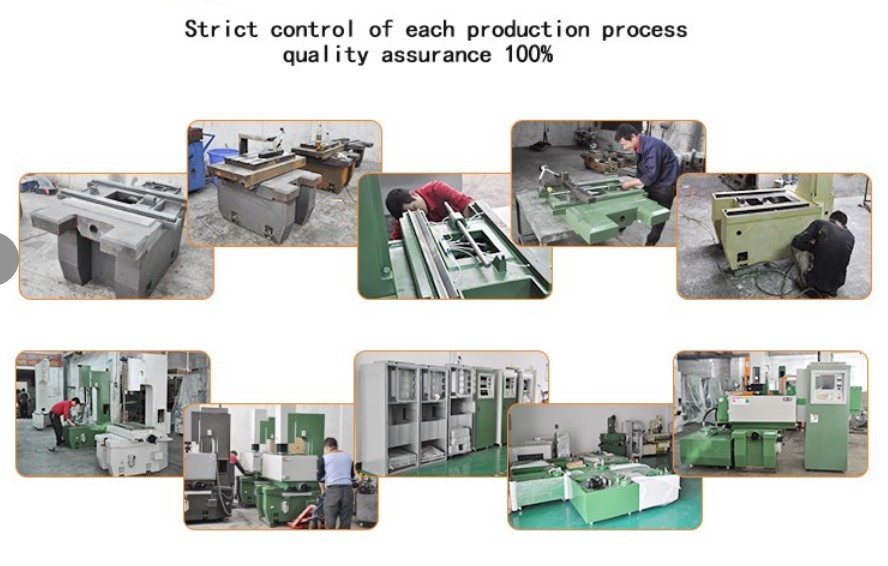

EDM1

Main Features

EDM is also known as electric spark machining. It’s a direct utilization of electrical energy and heat processing technology. It is based on during the spark discharge between the tool and the workpiece for removing excess metal in order to achieve the dimension, shape and surface quality of the predetermined processing requirements.

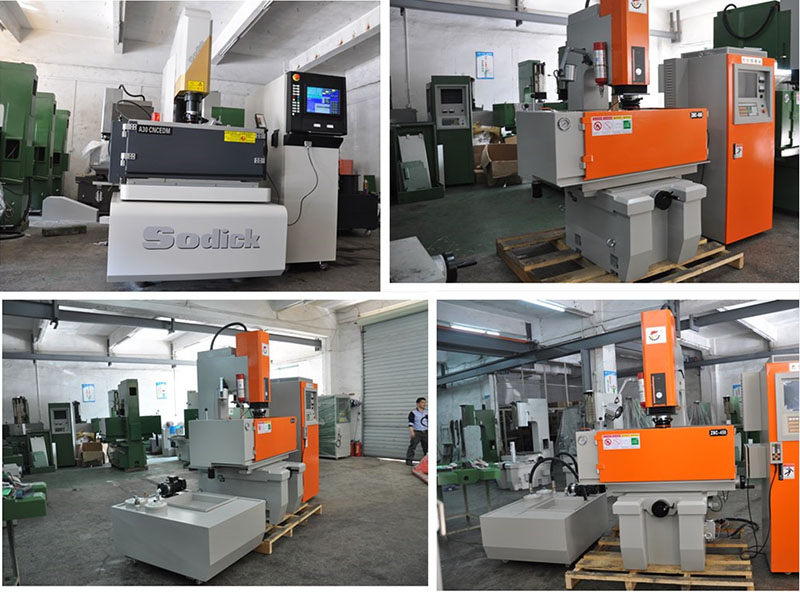

huohuaji1

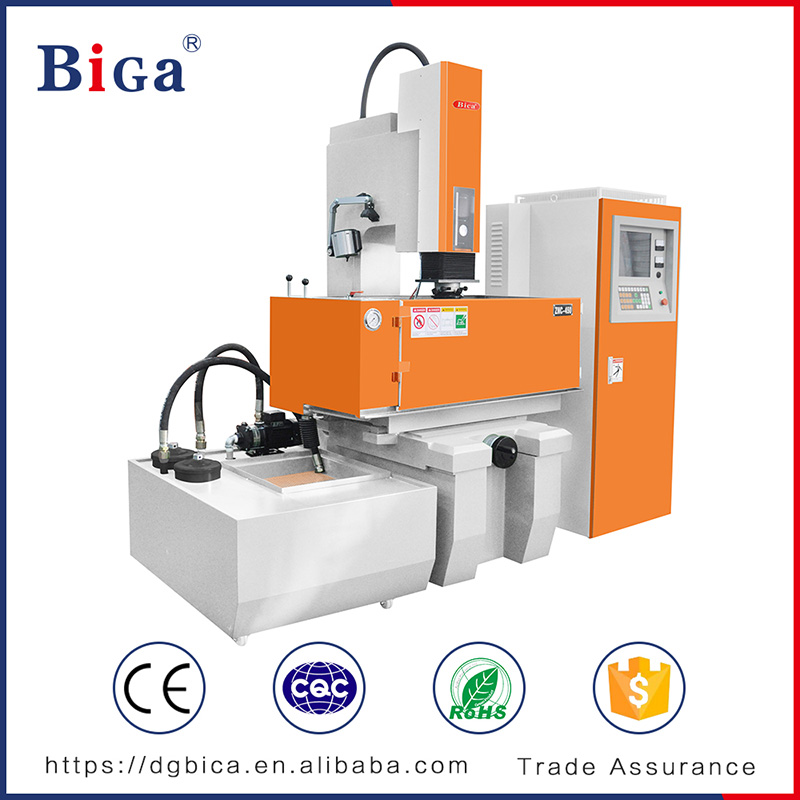

huohuaji2

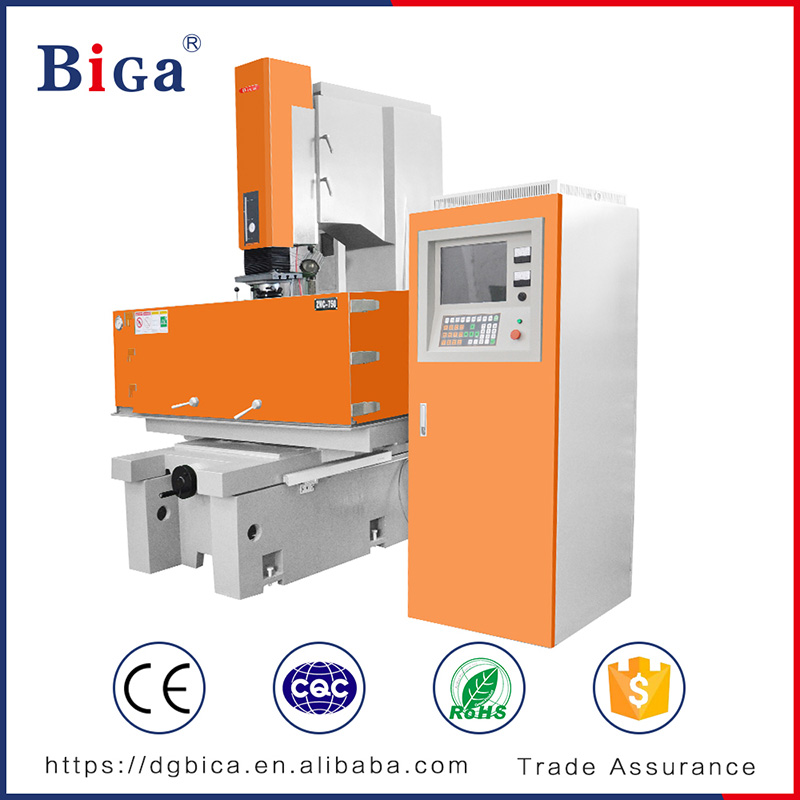

huohuaji3

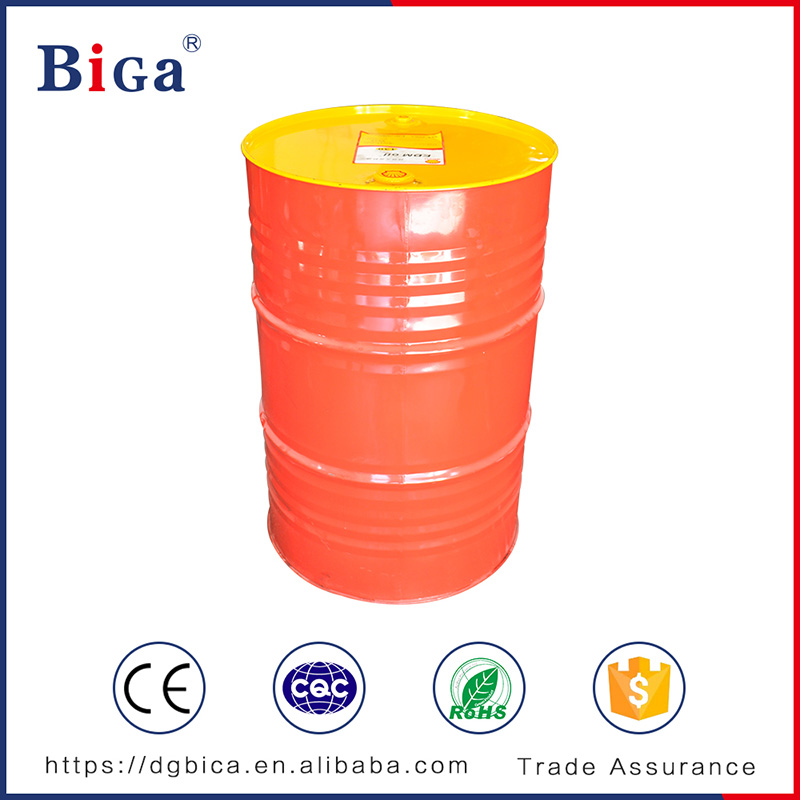

huohuaji6
huohuaji7

Product detail pictures:
