Short Description:

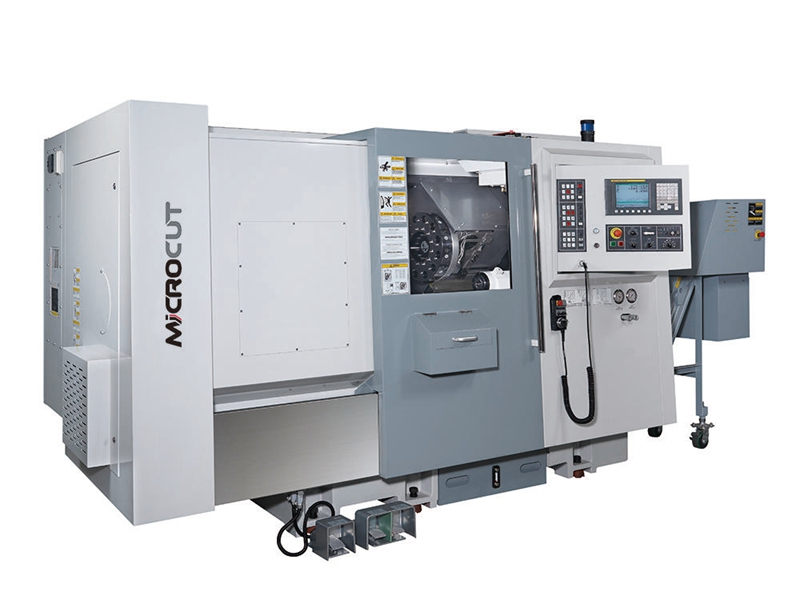

From small to large sized workpiece and from general turning to C-axis machining. The slant-bed lathe, HT series can be equipped with suitable options for high precision work. Two cutting lengths for selection: 750mm and 1250mm. 90mm bar capacity with powerful 22kW (30 min. rate) high power spindle motor, max. torque 1,023Nm (30kW with torque output 1,078Nm on request).

  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags

    EXPHOTO 263


    - Cartridge design of headstock allows easy spindle replacement.
    - Large bar capacity: 90mm


     Swing over bed mm 700
     Max. cutting dia. (with turret) mm 580
     Max. cutting length (with turret) mm 750/1250
     X axis travel mm 305
     Z axis travel mm 750/1250
     Slant bed degree degree 45
     Bar capacity mm 90(A2-8)
     Chuck size mm(inch) 305(12″)
     Spindle speed rpm 2500
     Spindle main power kW Fagor:22/33;
      Rapid feed (X&Z) m/min 24/24
     Machine weight kg 5600/6600

    Standard accessories:
    A2-6 Ø105mm spindle bore

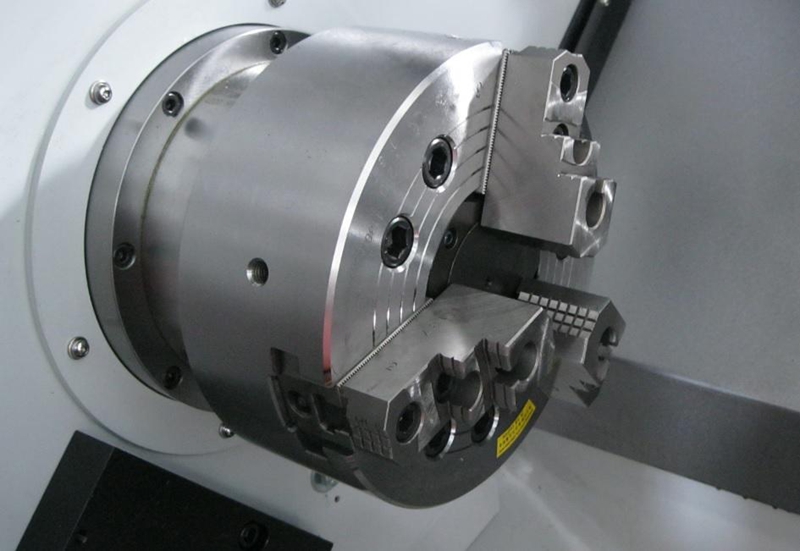

    Hydraulic 3-jaw chuck with hard jaw & soft jaw
    Programmable tailstock
    Auto lock/unlock door
    Heat exchanger

    Optional parts:
    5 bar coolant tank
    Tool holder set
    Tool setter
    Auto parts catcher
    Chip conveyor
    Chip collect case
    Hydraulic 3-jaw chuck (8″/10″)
    8 or 12 stations VDI-40 turret
    8 or 12 stations hydraulic turret, regular type
    8 or 12 stations power turret
    Power turret
    Air conditioner
    Cut off detector
    Hydraulic collet chuck
    Spindle sleeve
    Bar feeder
    Air conditioner for electric cabinet
    Oil skimmer
    Steady rest (20~200mm)
    Coolant through tool device
