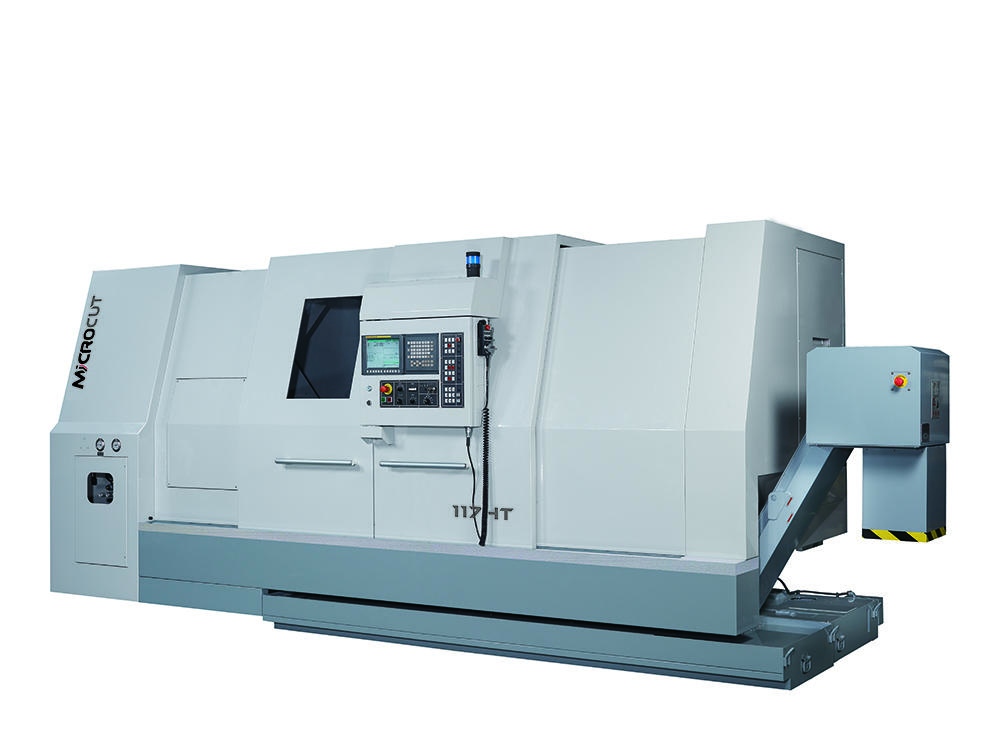

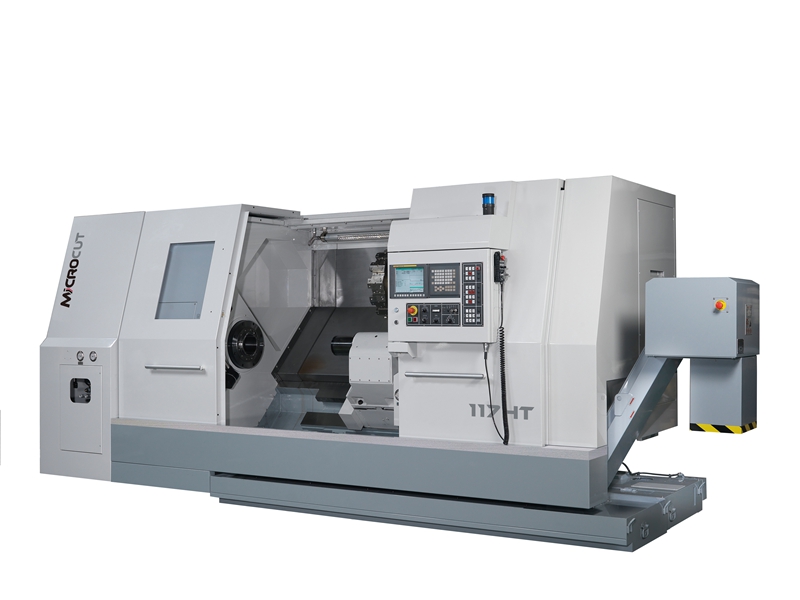

Mircrocut 117HT Horizontal Turning Machines
Features:

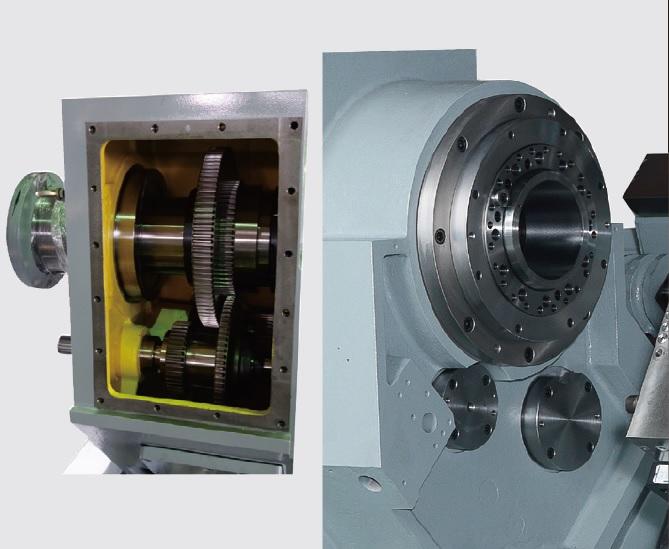

- Cartridge designed headstock for easy spindle replacement.
- Large bar capacity of 117mm
Specification:
| ITEM | UNIT | 117HT |
| Swing over bed | mm | 900 |
| Max. cutting dia. | mm | 700(std.); |
| 610(TBMA VDI50); | ||
| 505(TBMA VDI60) | ||
| Max. cutting length (with turret) | mm | 1300/2050/2800/3800 |
| X axis travel | mm | 385 (350+35) |
| Y axis travel | mm | 100 (±50) |
| Z axis travel | mm | 1500/2250/3000/4000 |
| Slant bed degree | degree | 45 |
| Spindle speed | rpm | 1500 |
| Bar capacity | mm | 117 |
| Chuck size | mm(inch) | 450(18″) |
| Spindle main power | kW | 30/37 (Fanuc) |
| Rapid feed (X/Y/Z) | m/min | 20/20/20 |
| Machine weight | kg | 13000 |
Standard accessories:
Fanuc 0iTD Controller with 10.4”
LCD monitor with Manual Guide i
12 Position hydraulic turret, regular type
Tool holder package
18”Hydraulic 3-jaw chuck with hard jaws 18”
High pressure coolant system
Auto lubrication system
Work lamp
Hydraulic unit
Programmable tailstock
Fully enclosed splash guard with interlock safety device
Chip conveyor without bucket
Heat exchange
Optional parts:
Chip bucket
Power transformer
Renishaw tool setter (Automatic)
Renishaw tool setter (Manual)
C-axis
Power turret
Live toolholders
1) Axial live toolholder
2) Radial live toolholder
3) Seat back Radial live toolholder
Auto parts catcher
Bar feeder
Spindle reduction tube
Safety module
EMC
Current leakage detector
Air conditioner for electric cabinet
20 bar coolant through tool 20bar
Oil skimmer
