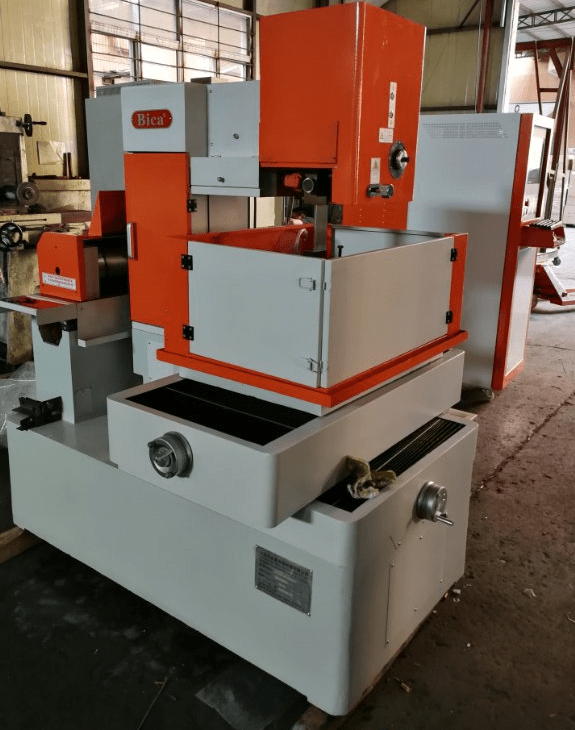

middle speed EDM wire cutting machine

Short Description:

Specification model: DK7732

Work table Size(L*W) mm: 450×690

Work table travel(X*Y*Z) mm :320×400×280

Max work piece thickness mm :±3°/80

Max cut speed mm2/min :180

The highest finish um:≤1.0

Molybdenum wire range mm:0.12-0.2


Product Detail

Product Tags

Model

W200

W300

Measuring range(mm) 200*100*200

300*200*200

Machine size(mm) 950*845*1285

1050*845*1285

Weight (kg)

150

190

Max.load (kg)

20

20

Accuracy of X-Y axis

3+L/200 卩 m

Accuracy of Z axis

5+L/200 卩 m

XYZ resolution

1 .Opm (option 0.5um, 0.1 um scale)

Repeatability (mm)

0.003

Linear encoder

glass linear scale

Camera type

SBK-HC536 1/3 inches 600 lines industrial color camera

Liner guide

Z axis:Taiwan"HIWIN"P grade linear guideway; XY use "V" type linear guideway

Optics

6:5:1 continual zoom step lens

Magnification

optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X

Software

SBK-E manual 2.5D measure software

Control system

SBK3000 control box, USB port, adjustable light

Profile illumination

LED cold lighting,256 level programmable brightness adjustment

Surface illumination

LED cold lighting with segmented independent control & 256 level programmable brightness adjustment

Onpratpd mcdp

handle wheel

Option device

0.5X.2X extend lens

Application area

E-W-Horizontal-manual-image-measuring-instrument-pic_03
Automobile manufacturing
E-W-Horizontal-manual-image-measuring-instrument-pic_05
The Lcd Panel
E-W-Horizontal-manual-image-measuring-instrument-pic_07
precision hardware gear
E-W-Horizontal-manual-image-measuring-instrument-pic_09
P-CNC
E-W-Horizontal-manual-image-measuring-instrument-pic_15
mechanical processing injection mold
E-W-Horizontal-manual-image-measuring-instrument-pic_16
Magnetic materials
E-W-Horizontal-manual-image-measuring-instrument-pic_17
Electronics manufacturing terminals are made by plugins
E-W-Horizontal-manual-image-measuring-instrument-pic_18
Electronics manufacturing terminals are made by plugins
E-W-Horizontal-manual-image-measuring-instrument-pic_23
car manufacturing
E-W-Horizontal-manual-image-measuring-instrument-pic_24
PCB
E-W-Horizontal-manual-image-measuring-instrument-pic_25
Automobile manufacturing
E-W-Horizontal-manual-image-measuring-instrument-pic_26
machine box body
