Taiwan quality Chinese price MVP866 Machine center

Short Description:

High-speed high-precision vertical machining center adopts imported control systems such as Mitsubishi and Fanuc and its supporting servo drives and motors to realize three-axis or multi-axis linkage. It is suitable for complex structures, multiple processes, high precision requirements, and multiple installation Only clamping and adjustment can complete the processing of the processed parts. The machining center can process cabinets, complex curved surfaces, shaped parts, plates, sleeves, and plate parts, and is widely used in aerospace, automotive locomotives, instrumentation, light industrial textiles, electronic appliances, and machinery manufacturing.


Product Detail

Product Tags

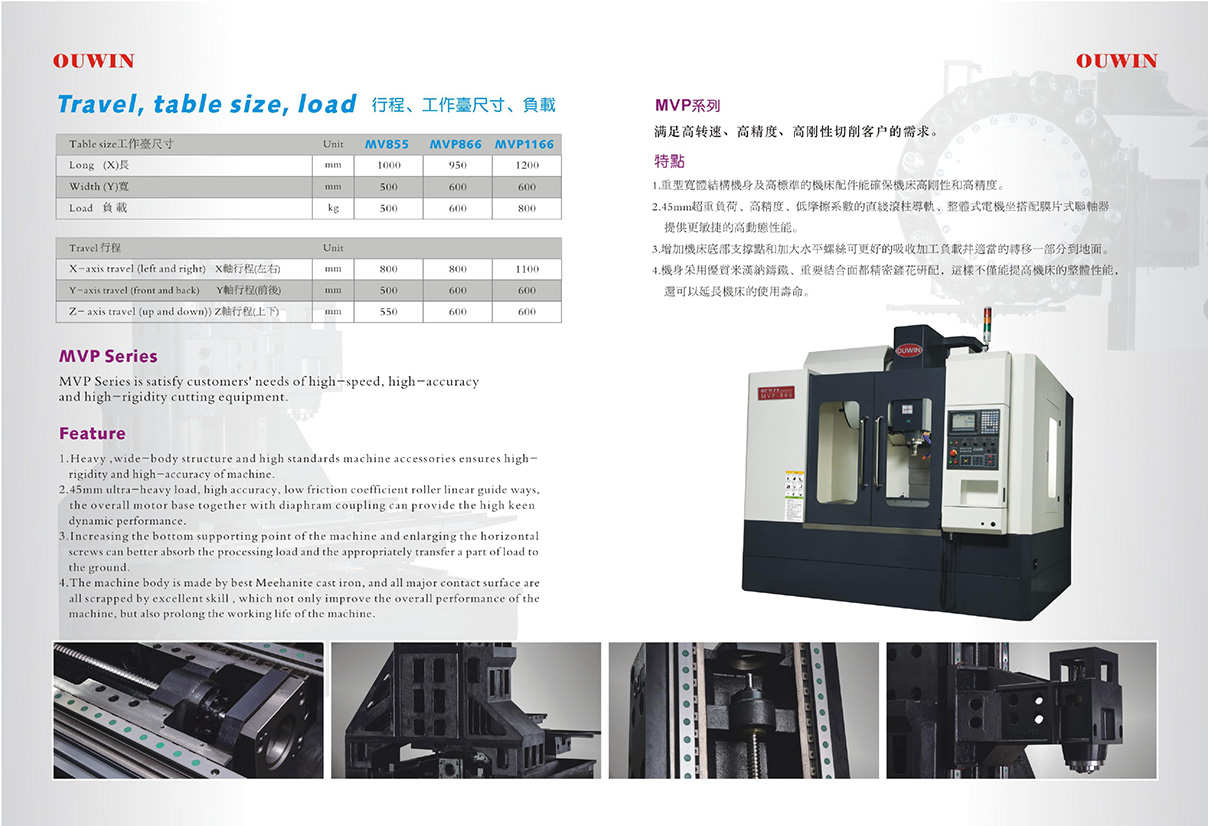

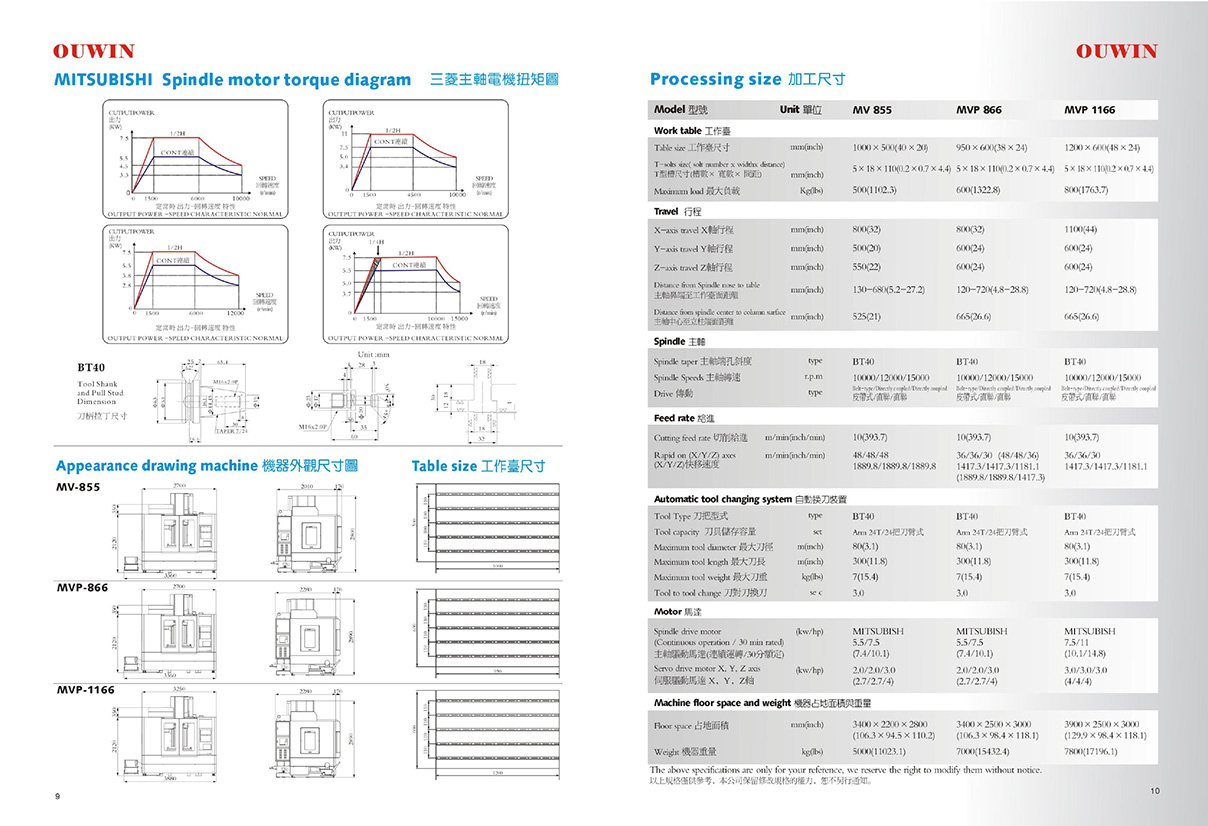

Processing size

Model Unit MVP 866
Work table
Table size mm(inch) 950×600(38×24)
T—solts size( solt number x widthx distance) mm(inch) 5×18×110(0.2×0.7×4.4)
Maximum load Kg(lbs) 600(1322.8)
Travel
X-axis travel mm(inch) 800(32)
Y—axis travel mm(inch) 600(24)
Z—axis travel mm(inch) 600(25)
Distance from Spindle nose to table mm(inch) 120-720(4.8-28.8)
Distance from spindle center to column surface mm(inch) 665(26.6)
Spindle
Spindle taper type BT40
Spindle Speeds r.p.m 10000/12000/15000
Drive type Belt-tvpe/Directly coupled/Directlv coupled
Feed rate
Cutting feed rate m/min(inch/min) 10(393.7)
Rapid on (X/Y/Z) axes m/min(inch/min) 36/36/30(48/48/36)
(X/Y/Z) fast moving speed m/min(inch/min) 1417.3/1417.3/1181.1
(1889.8/1889.8/1417.3)
Automatic tool changing system
Tool Type type BT40
Tool capacity set Arm 24T
Maximum tool diameter  m(inch) 80(3.1)
Maximum tool length m(inch) 300(11.8)
Maximum tool weight  kg(lbs) 7(15.4)
Tool to tool change  sec 3
Motor
Spindle drive motor
Contimious operation / 30 min rated
(kw/hp) MITSUBISH
5.5/7.5
(7.4/10.1)
Servo drive motor X, Y, Z axis (kw/hp) 2.0/2.0/3.0
(2.7/2.7/4)
Machine floor space and weight
Floor space mm(inch) 3400×2500×3000
(106.3×98.4×118.1)
Weight kg(lbs) 7000(15432.4)

Machine Center

High-speed high-precision vertical machining center adopts imported control systems such as Mitsubishi and Fanuc and its supporting servo drives and motors to realize three-axis or multi-axis linkage. It is suitable for complex structures, multiple processes, high precision requirements, and multiple installation Only clamping and adjustment can complete the processing of the processed parts. The machining center can process cabinets, complex curved surfaces, shaped parts, plates, sleeves, and plate parts, and is widely used in aerospace, automotive locomotives, instrumentation, light industrial textiles, electronic appliances, and machinery manufacturing.

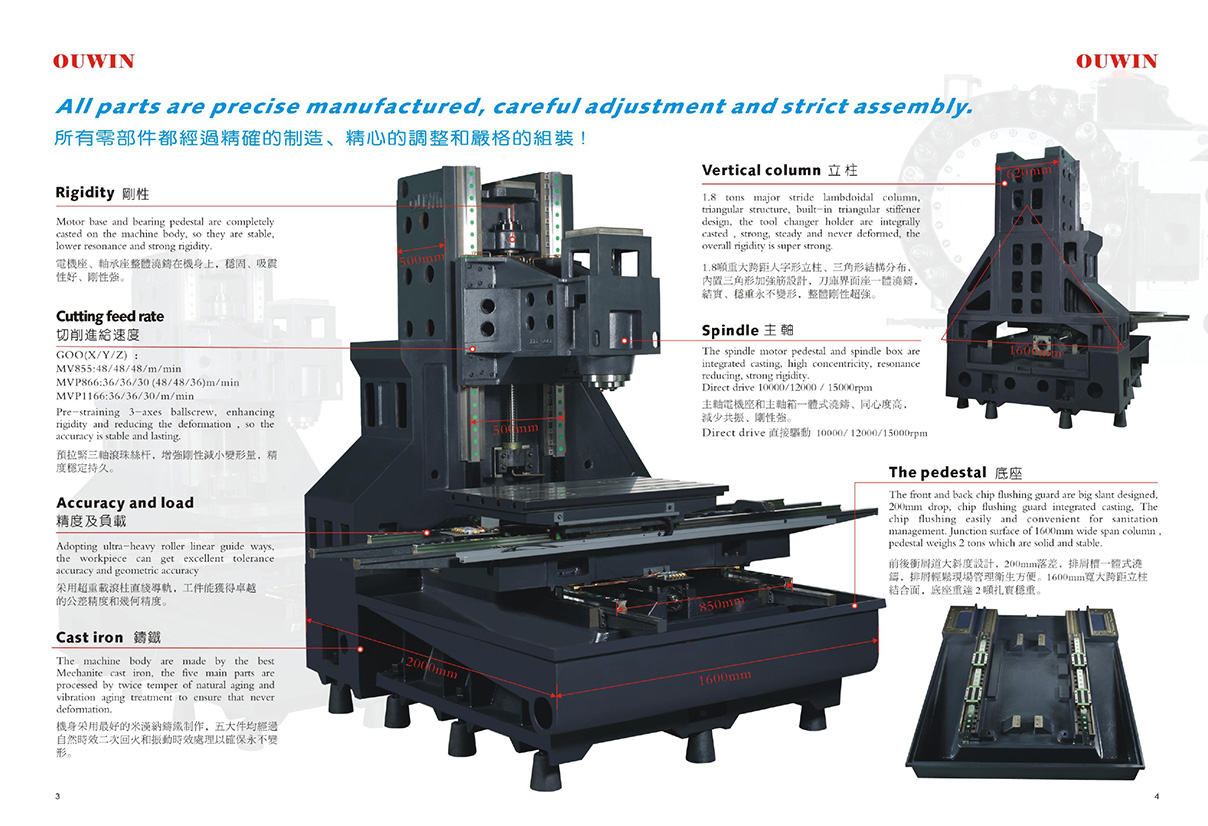

Whole machine structure

The body parts are made of high-quality FC300 brand cast iron, the internal reinforcement is strengthened, all undergo natural aging, secondary tempering and vibration aging treatment, and the finite element analysis is carried out through special design software. It has high strength, good stability and is not easy Deformation and other characteristics. The large-width base design makes the overall force of the machine tool more uniform and the operation more stable. The large-angled herringbone column structure adopts high-density, high-strength rice-shaped ball mesh cross reinforcing ribs to effectively prevent the deformation and vibration of the column. The screw support bearing seat adopts the integral casting design with the casting body, and the workbench screw nut seat and the worktable are integrated casting design, which greatly improves the rigidity and stability of the machine tool during movement. Reasonable structure, rigorous design and fine craftsmanship effectively ensure the rigidity of the whole machine and the accuracy and stability of long-term use.



Main shaft

box-type short nose end spindle head structure, internal rib reinforcement, main shaft motor mounting seat and box body adopt an integrated structure design, strong rigidity, good shock absorption, effectively reducing the vibration and resonance of the main shaft during operation. Equipped with Taiwan famous brand spindle, the spindle adopts imported super-precision bevel ball bearing and large-span support design, so that the spindle can withstand strong radial and axial thrust and eliminate the vibration caused by heavy load cutting. The maximum speed of the main shaft is 15000RPM, coupled with the transmission of the gapless precision coupling, which has the characteristics of high precision, low noise, low power loss and fast response. The spindle motor servo adopts the power supply to rise, which greatly improves the response speed of the motor when it starts. The nose of the spindle adopts multi-maze and air curtain dustproof design, which can effectively prevent the entry of debris and ensure the accuracy and life of the spindle for long-term use.

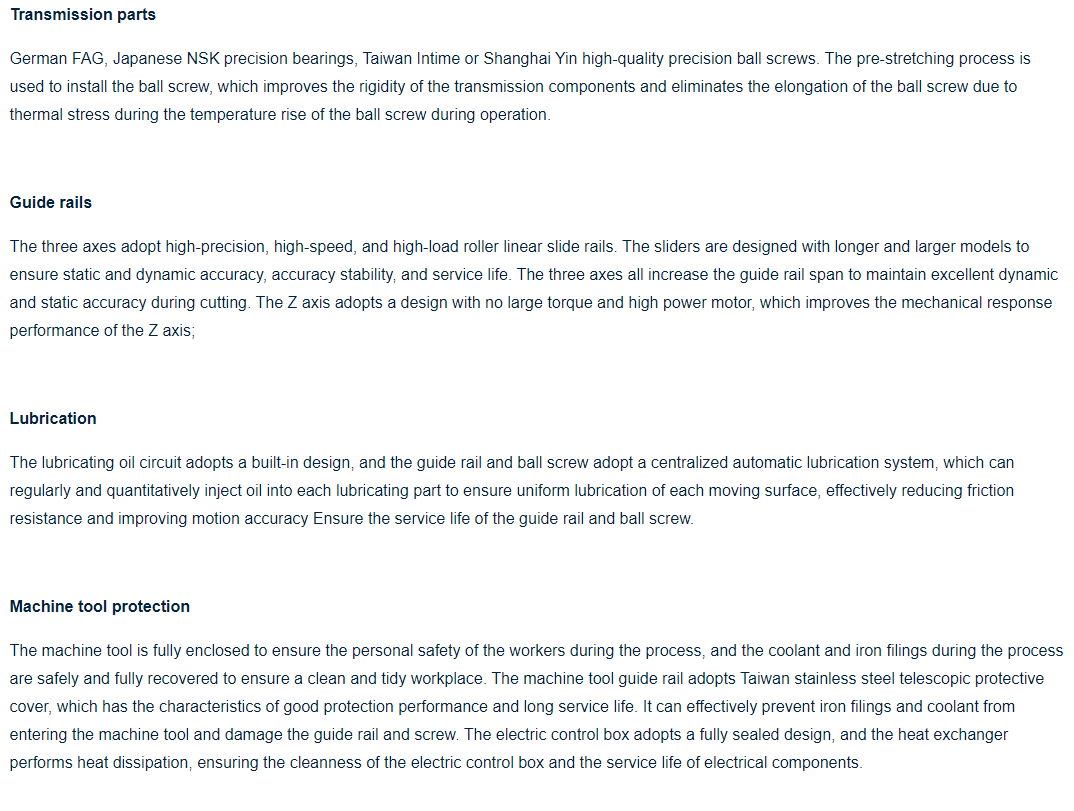

Transmission parts

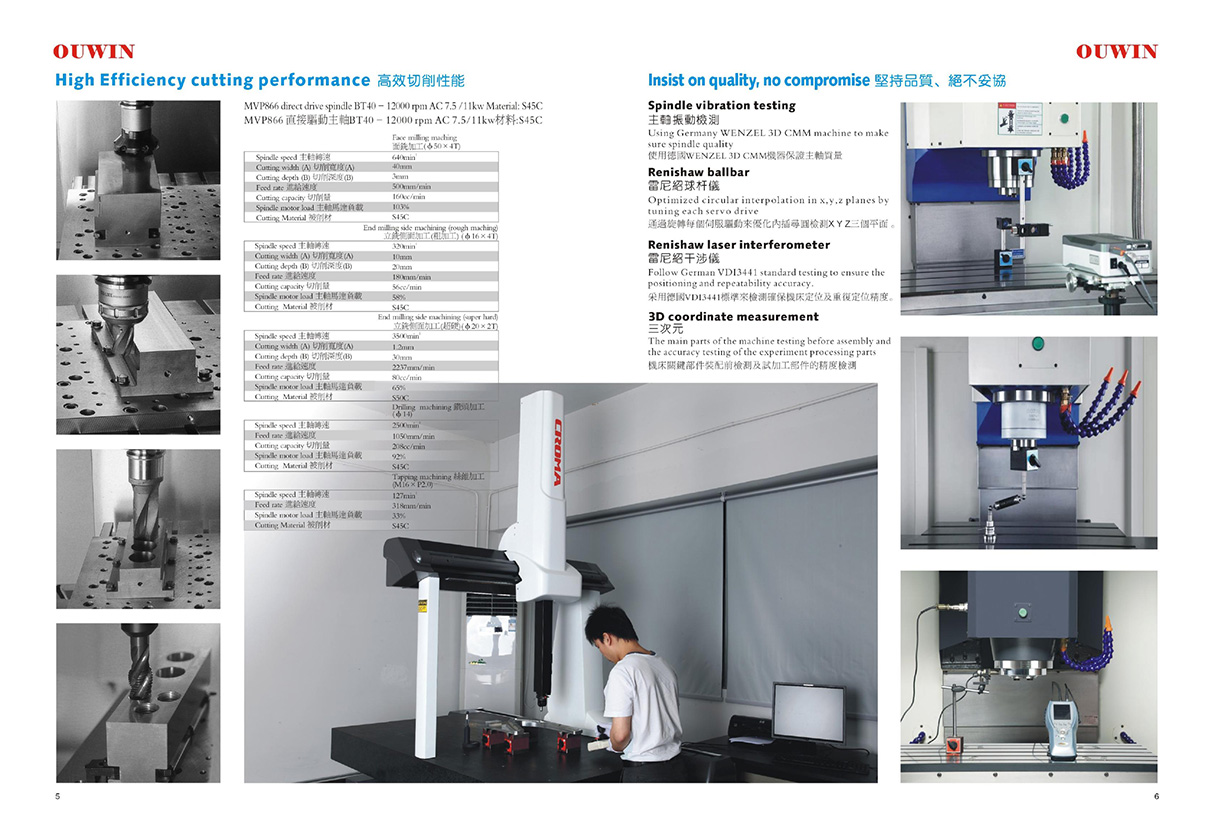

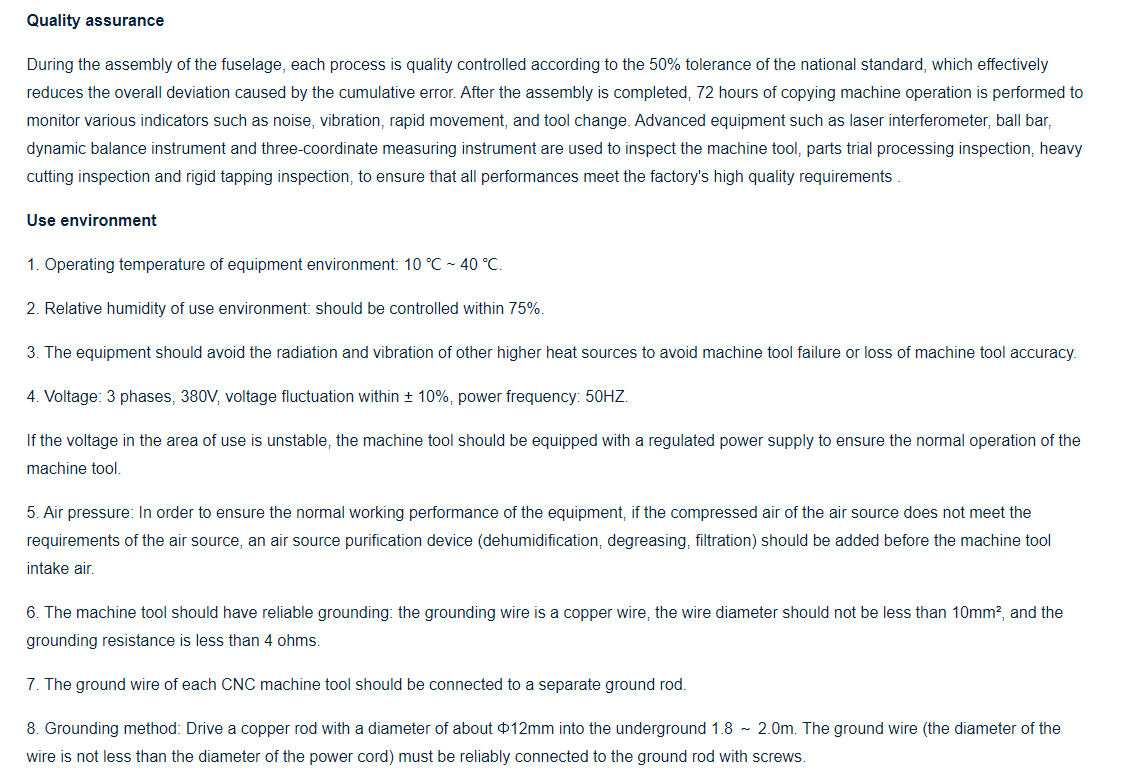

Quality assurance
CNC Milling Machine
CNC Milling Machine2
CNC Milling Machine3

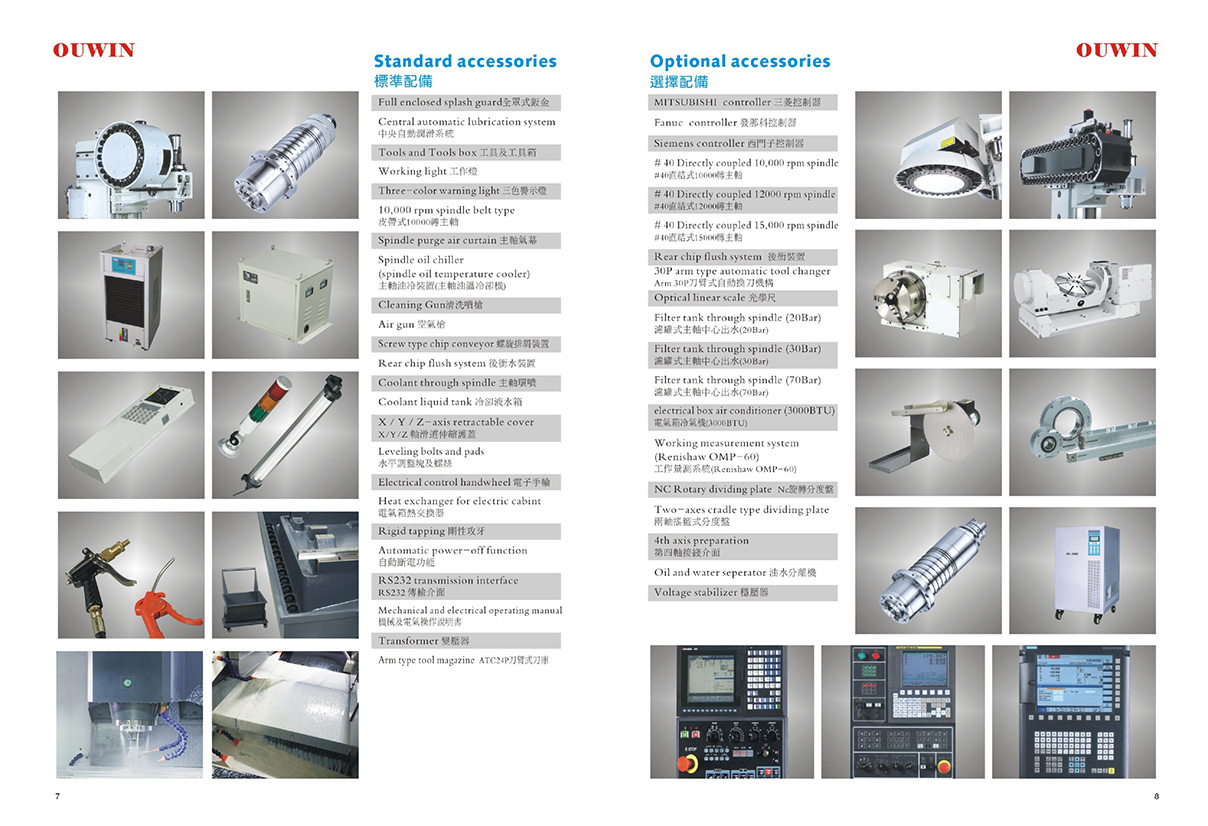

CNC Milling Machine4
CNC Milling Machine5
