For mold manufacturers, carbide tool workshops, aerospace and medical component factories, machining complex 2D curved profiles with micron-level tolerance has always been a tough challenge.

Traditional optical profile grinders rely on photographic film projection. Operators need to align workpiece contour against film pattern manually. This working mode heavily depends on technician experience, leads to long setup time, unstable repeat accuracy, and low efficiency for multi-variety small-batch production.

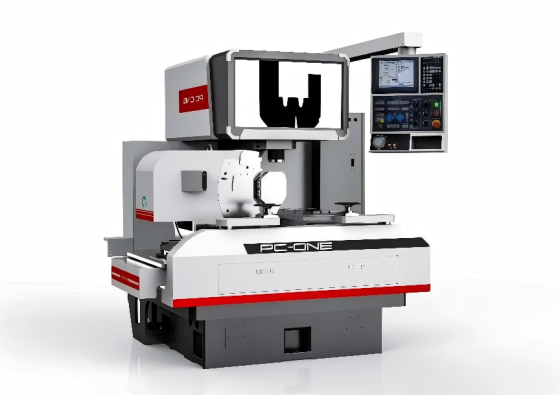

The PC-ONE CNC optical profile grinder abandons the old-style film projection. Equipped with high-precision CCD digital visual system, it realizes direct DXF-CAD file import, visual real-time monitoring during grinding process. It greatly reduces dependence on operator skill while keeping micron-level machining accuracy. In this article we walk through its core configuration, key advantages, typical application cases and purchasing notes.

Core Hardware & Main Specifications

Machine performance roots in mechanical foundation. The PC-ONE adopts stress-relief annealed cast-iron machine bed, which effectively reduces internal stress deformation during long-term running, guarantees long-term geometric stability.

✅ Machine bed: Stress-relief cast iron structure ✅ Visual system: High‑resolution CCD camera, magnification 1‑150×, real‑time on‑screen monitoring ✅ File input: Direct DXF CAD import, no photographic film required ✅ Max grinding wheel diameter: 180 mm (customized upgrade available) ✅ Machining accuracy: Positioning accuracy ±0.002 mm, surface roughness Ra ≤0.2 μm ✅ Axis: 4‑axis simultaneous linkage ✅ Working accessories: Compatible with SK series collets, magnetic chuck, three‑jaw chuck, rotary indexing device

Many old‑type profile grinders are limited by original design, cannot install larger grinding wheels. PC‑ONE’s reinforced spindle and safety guard structure support 180 mm grinding wheel, covering more large‑size profile grinding requirements for punches and dies.

Typical Application & Target Workpieces

Who will benefit most from PC‑ONE optical profile grinder?

1.Stamping mold factory Complex punches, die inserts, forming parts with complicated curved contour. Replace old film‑type PG grinder, shorten setup time for frequent part change‑over. 2.Carbide tool workshop Carbide cutting blades, special‑shape forming tools. Strict requirement on edge quality and surface finish. 3.Aerospace & medical component supplier Small complex‑shape parts with strict micron tolerance requirement, high‑value precision components. 4.Real‑world pain point solved Before: Change new workpiece → make film → manual alignment, takes hours for setup. After: Import DXF drawing directly, visual assistance for alignment, setup time greatly shortened. It does not mean zero‑skill operation, but greatly lowers the threshold for new operators and improves consistency between batches.

Key Points When Selecting Optical Profile Grinder

When sourcing optical profile grinder from overseas supplier, please pay attention below points:

1. Confirm maximum allowable grinding wheel diameter, whether spindle and safety guard support upgrade
2. Confirm visual system: Digital CCD type or traditional film projection type
3. Check compatibility of standard & optional accessories: magnetic plate, SK collet sets, rotary indexing fixture
4. Clarify after‑sales service: remote support, spare parts lead‑time, on‑site service possibility
5. For countries with export‑license requirement, confirm the whole compliance procedure in advance.

Get More Information If you are looking for digital optical profile grinder for your workshop, feel free to contact us. We can send full datasheet, quotation, workpiece sample reference according to your part drawing. Leave your message or send inquiry, our engineering sales team will reply shortly. #OpticalProfileGrinder #CNCProfileGrinder #MoldMaking #PrecisionGrinding #CarbideTooling
