1. Industry Pain Points: Why Traditional Crank Grinders Restrict Factory Output

The global demand for high-precision eccentric shaft parts keeps rising, especially HVAC compressors, new energy vehicle camshafts and robot reducer shafts. Most manufacturers face 4 core production bottlenecks with old grinding machines:

• Precision drift after long-time operation: Ordinary linear guide wear quickly after 3-6 months of continuous work. Thermal deformation caused by high grinding temperature leads roundness tolerance out of specification, frequent manual compensation is required every 2 hours.
• Multiple clamping causes high reject rate: Traditional grinders only grind one eccentric outer diameter per setup. Repeated disassembly & clamping bring cumulative positioning error, scrap rate stays at 8%-12%.
• Low production efficiency, limited output: Separate rough grinding and finish grinding procedures extend single-piece cycle time, unable to support large batch orders from auto and refrigeration brands.
• Hidden collision risk & high maintenance cost: Without real-time air gap detection, grinding wheel or workpiece collision often happens, causing expensive spindle repair and production shutdown.

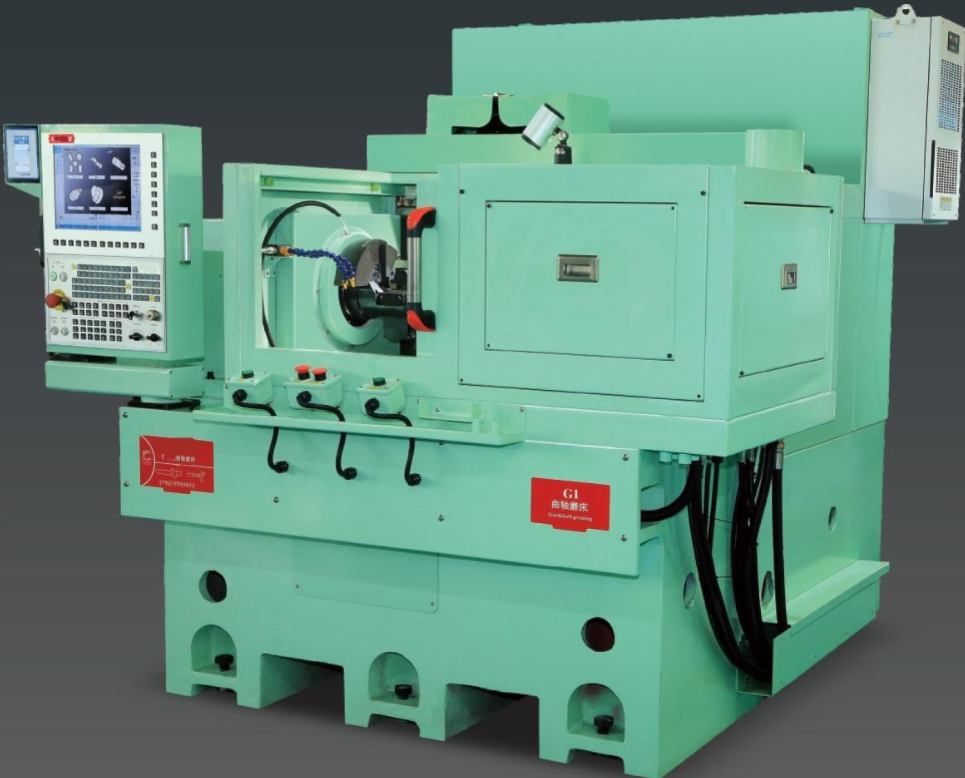

• Facing these industry-wide troubles, Yuhen R&D team spent 2 years optimizing the G1 crankshaft grinder. Combined finite element multi-physics simulation and full hydrostatic transmission design, this model solves all above pain points for mass eccentric shaft processing.

2. Whole Machine Structural Design & Finite Element Optimization Analysis

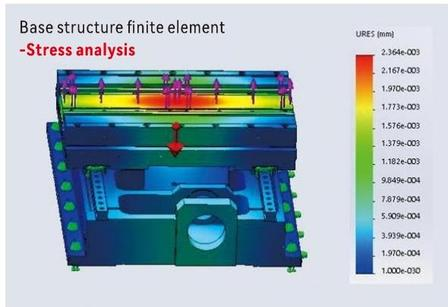

2.1 High Rigidity Cast Iron Bed Frame

All base, column and slide components adopt high-grade dense baked cast iron. After artificial aging stress relief treatment for over 6 months, the bed avoids long-term deformation under 24h continuous heavy grinding load. The inclined oil drainage design on the bed prevents cutting fluid accumulation, no oil leakage, easy daily cleaning and maintenance.

2.2 Multi-Physical Field Simulation Verification Before Mass Production

Before formal production, every key component of G1 passes finite element static stress analysis, resonance frequency test and fluid thermal coupling simulation:

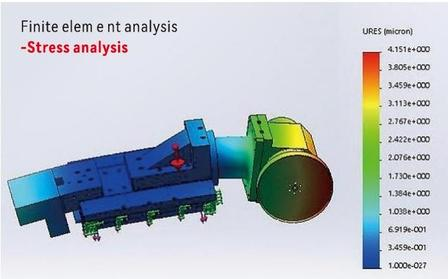

• Static stress test: Max deformation controlled within micron level under full grinding load
• Resonance analysis: Avoid working frequency overlap with spindle rotation speed, eliminate high-speed vibration

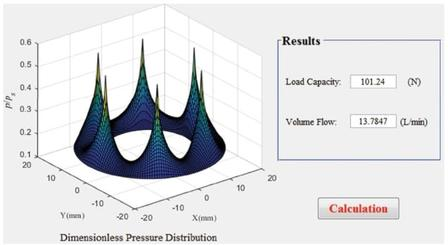

• Hydrostatic oil film pressure simulation: Optimize oil cavity layout to balance uniform bearing capacity

2.3 Core Advantage: Full Hydrostatic Guide Rail System

Hydrostatic guide is the core competitive advantage of Yuhen eight-series grinders, different from ordinary linear guide competitors.

• Material: Composite base after nitriding + cryogenic treatment, ultra-high rigidity, corrosion resistance
• Working principle: Pure liquid friction between guide surfaces, zero direct metal contact, no wear even after decades of operation
• Precision index: Straightness less than 0.1μm / 500mm
• Thermal stability: Built-in circulating cooling channel on guide body, control temperature rise within ±0.5°C during long-hour grinding
• Service life: Unlimited theoretical service life, almost zero guide maintenance cost

3. Full Closed-Loop Precision Control System & Core Accuracy Parameters

3.1 High Precision Grating Ruler Full Feedback

G1 equips imported high-resolution grating ruler as standard configuration, realize full closed-loop control of X-axis feed system, no intermediate transmission error:

Every feeding movement of the grinding wheel is measured in real time by grating, the CNC system automatically compensate tiny dimensional deviation, ensure consistent size of thousands of workpieces in one batch.

3.2 Marposs Anti-Collision & Online Air Gap Detection System

This integrated safety & measuring module is standard configuration for G1, two core functions:

• Air clearance real-time monitoring: Detect distance between grinding wheel and workpiece in real time, send early warning alarm when gap is too small, avoid rigid collision.
• Automatic grinding wheel diameter calibration: The system records actual wheel size dynamically, adjust feed stroke automatically after wheel dressing, no manual input parameter.

3.3 Intelligent CNC Human-Machine Interface

Windows-based graphical operation system, two convenient functions for factory operators:

• Online editing of eccentric shaft contour curve
• Direct drawing import, auto generate complete grinding program: No complex G-code manual programming required, reduce operator training cycle from 1 month to 3 days.

4. One-Clamp Multi-Eccentric Integrated Grinding Function

4.1 Unique Processing Logic for Eccentric Workpieces

Most crankshaft grinders on market can only grind single eccentric circle once clamped. G1 realizes one-time clamping to finish 2 or more eccentric outer diameters grinding:

• Fix workpiece by two centers or hydraulic chuck
• C-axis torque motor drives workpiece to rotate at variable speed
• X-axis linear motor high-speed feed, coordinate linkage with C-axis to follow eccentric contour
• Complete rough grinding, semi-finish and finish grinding without re-clamping

4.2 Efficiency & Yield Data Comparison

4.2 Spindle Matching for Strong Grinding Force

Grinding wheel spindle adopts finite element optimized installation structure, enhance rigidity during heavy stock removal. It can bear large grinding cutting force for rough machining of forgings and cast crankshaft blanks, no chatter marks on workpiece surface.

5. Automation Compatible Design, Unmanned Production Line Matching

5.1 Reserved Standard Robot Connection Interface

G1 reserves complete signal interface for 6-axis robotic arm and truss manipulator, support fully automatic loading/unloading without machine modification:

• Automatic workpiece feeding
• Automatic clamping & centering
• Online outer diameter size detection
• Automatic grinding wheel dressing & compensation
• Finished product sorting & blank stacking

5.2 Optional Auxiliary Automation Modules

Customers can select supporting modules according to workshop layout:

• Multi-stage constant temperature grinding fluid filtration system: Filter precision 0.01mm, keep workpiece surface roughness stable
• Oil mist collector: Full cover sheet metal optional, clean workshop environment, suitable air-condition precision workshop
• Automatic workpiece cleaning station: Remove grinding residue before offline measurement

5.3 One-Man Multi-Machine Management Mode

After matching robot unit, one operator can take charge of 3-6 sets of G1 grinders at the same time. Labor cost reduced by 70% compared with manual feeding mode, perfectly fit European, Southeast Asian factories with high labor cost.

6. Wide Application Industry & Typical Machining Workpieces

6.1 Core Application Industry 1: Refrigeration & Air Conditioning Compressor

Main processing parts: Compressor crankshaft, eccentric shaft for refrigerator, air conditioner rotary compressor

Processing requirement: Roundness ≤1.5μm, batch size 5000-50000pcs per month

Industry advantage: G1 stable precision solves the problem of compressor noise caused by eccentric shaft dimensional deviation.

6.2 Core Application Industry 2: New Energy Automobile

Main processing parts: Engine camshaft, drive eccentric shaft, new energy motor intermediate shaft

Processing requirement: High fatigue resistance, consistent surface finish for long service life of auto parts

6.3 Extended High-End Application Fields

• Aerospace equipment: Small special eccentric precision shaft
• Medical devices: Implant equipment micro eccentric parts
• Hydraulic & pneumatic components: Hydraulic valve eccentric shaft
• Robot reducer: High precision output eccentric shaft

6.4 Workpiece Machining Quality Standard

After grinding by G1 machine:

• Roundness: ≤1.5μm
• Coaxiality: ≤2.5μm
• Surface roughness: Ra ≤0.25μm

7. Full Machine Safety Protection & Long-Term Stable Operation

7.1 Multi-Layer Safety Protection Mechanism

• Air gap anti-collision alarm system
• Emergency stop button + safety door interlock protection
• Spindle low oil pressure automatic shutdown protection (hydrostatic spindle exclusive function)
• Overload & overheating automatic power-off device

7.2 Low Maintenance Cost Design

• Hydrostatic guide zero wear, no regular guide replacement
• Circulating cooling system extend spindle service life, spindle maintenance cycle over 3 years
• Split grinding fluid filtration tank, easy disassembly and cleaning, reduce downtime

7.3 Quality Control Standard Before Delivery

Every G1 grinder undergoes 72-hour full load continuous running test before factory delivery:

1. Continuous eccentric shaft grinding test
2. Precision repeated detection every 4 hours
3. Automation linkage function full test
4. Safety protection system inspection Only all precision indexes keep stable can the machine be packaged and delivered to customers.

8. Cooperation & Contact Information, CTA Ending

8.1 Why Choose Beijing Yuhen Machinery as Your Grinding Machine Supplier

• Complete eight-series grinder product line: Centerless / Cylindrical / Compound / Insert / Vertical / Crankshaft / Camshaft / Thread grinder, one-stop grinding equipment supplier
• Independent R&D fluid simulation software, self-developed CNC control system, core technology independent intellectual property
• Customized service: Non-standard grinding machine, full automatic production line design according to workpiece drawing
• Global after-sales service: Overseas engineer video guidance, spare parts fast delivery
• Free service: Workpiece process simulation, free sample grinding test, professional technical proposal
