Die sinking EDM (also known as sinker EDM or ram EDM) is essential precision metalworking equipment for mold cavity machining, widely used in plastic molds, die-cast molds and hardened steel mold manufacturing. Many buyers are confused about ZNC die-sinking EDM and CNC die-sinking EDM. This article clearly explains their core differences to help you select the right EDM machine.

1. Control System & Operation Mode

This is the most fundamental difference between the two EDM models. ZNC die-sinking EDM is a semi-automatic machine with only the Z-axis digitally controlled for automatic spark erosion feeding. Its X and Y axes require manual adjustment and positioning by operators, which is simple to operate and suitable for single-cavity and small-batch mold processing.

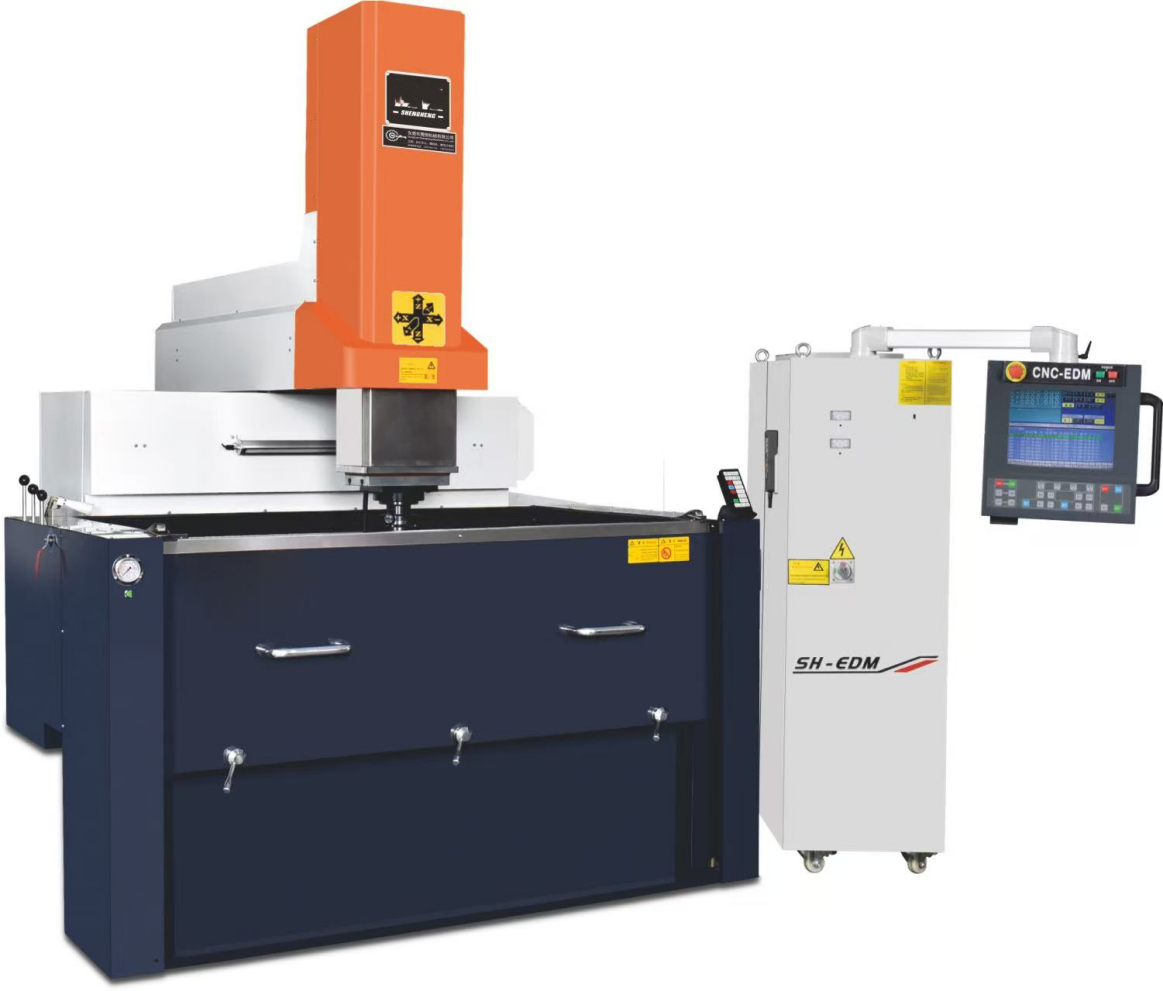

CNC die-sinking EDM features full-axis automatic CNC control. All X, Y and Z axes are servo-driven and programmable, supporting automatic positioning, continuous machining and multi-axis linkage. It realizes unmanned batch processing and complex contour machining without manual intervention.

2. Machining Precision & Finish Quality

Equipped with high-precision Taiwan PMI ball screws and linear guides and Panasonic servo systems, both machines deliver stable performance. However, CNC die-sinking EDM achieves higher and more consistent precision. It supports professional mirror finish machining and ultra-fine texture processing with a surface roughness up to Ra ≤ 0.4 μm, ideal for high-precision cosmetic molds and precision electronic molds.

ZNC EDM meets standard precision requirements for ordinary plastic molds and general hardware molds, fully satisfying conventional mold production demands.

3. Machining Capacity & Application Scenarios

ZNC Die-Sinking EDM: Cost-effective and easy to maintain. It is the best choice for small factories, processing workshops and budget-sensitive projects, mainly for simple mold cavities, single-piece and small-batch production.

CNC Die-Sinking EDM: Supports complex 3D cavity machining, multi-cavity batch production and optional configurations like 4th rotary axis and electrode tool magazine. It is tailored for high-end, complex and high-precision mold manufacturing, widely applied in aerospace, automotive and precision medical mold industries.

4. Structure & Operational Convenience

Both models adopt optimized industrial structures, including cross-type worktables and short C-type spindle designs to enhance rigidity and stability, with granite worktables ensuring excellent insulation for better fine machining effects. Both are upgraded with vertical up-and-down opening fluid tank doors for space-saving and more convenient operation. The major structural advantage of CNC EDM is intelligent automatic operation, greatly improving production efficiency and reducing labor costs.

Final Selection Guide

Choose ZNC die-sinking EDM if you need cost-effective, stable equipment for conventional and simple mold processing. Choose CNC die-sinking EDM if your business involves high-precision, complex, mass-production mold machining with strict surface finish requirements.
