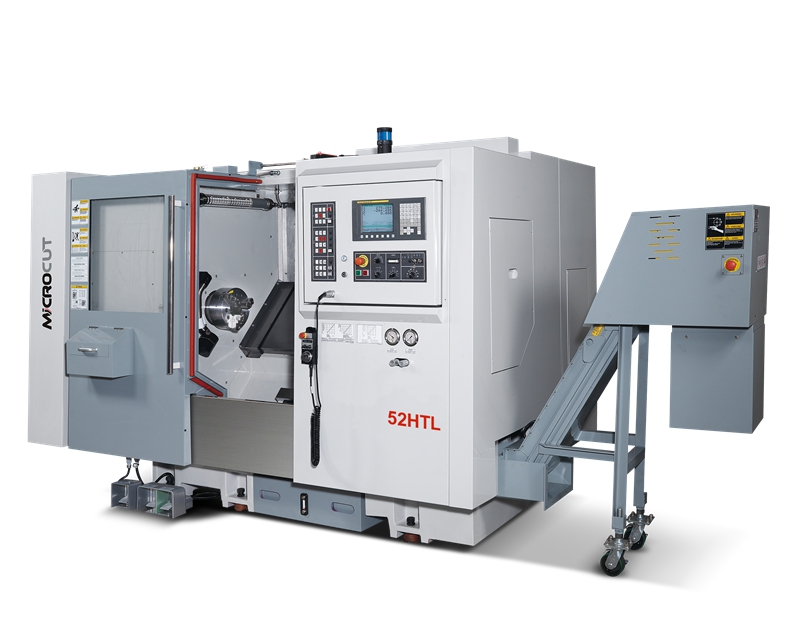

52HT/HTL Horizontal Turning Machines

Short Description:

From small to large sized workpiece, from general turning to C-axis machining. The Slant-bed lathe, HT series can be equipped with suitable options for high precision work. Two cutting lengths for selection: 750mm and 1250mm. 51mm bar capacity with powerful 15kW (30 min. rate) high power spindle motor, max. torque 392 Nm (18.5 kW with torque output 605 Nm is available on request).

  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags





    Large bar capacity: 51 mm


     Swing over bed mm 600
     Max. cutting dia. (with turret) mm 580
     Max. cutting length (with turret) mm 750/1250
     X axis travel mm 305
     Z axis travel mm 750/1250
     Slant bed degree degree 45
     Spindle speed rpm 4500
     Bar capacity mm 51(A2-6)
     Chuck size mm(inch) 200(8″)
     Spindle main power kw Fagor:12/18.5
     Rapid feed (X&Z) m/min 24 / 24
     Machine weight kg 5400

    Standard accessories:
    A2-6 Ø62mm spindle bore

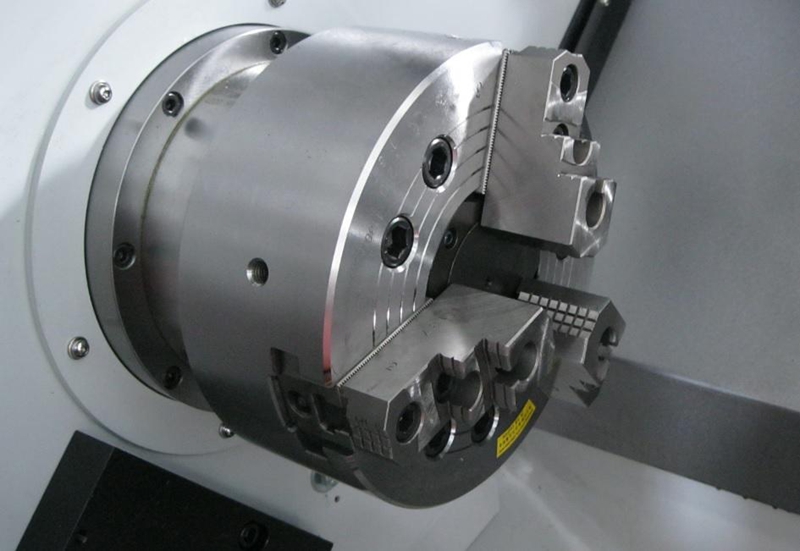

    Hydraulic 3-jaw chuck with hard jaw & soft jaw
    Programmable tailstock
    Auto lock/unlock door
    Heat exchanger

    Optional parts:

    5 bar coolant tank
    Tool holder set
    Tool setter
    Auto parts catcher
    Chip conveyor
    Chip collect case
    Hydraulic 3-jaw chuck (8″/10″)
    8 or 12 stations VDI-40 turret
    8 or 12 stations hydraulic turret, regular type
    8 or 12 stations power turret
    Air conditioner
    Cut off detector
    Hydraulic collet chuck
    Spindle sleeve
    Bar feeder
    Air conditioner for electric cabinet
    Oil skimmer
    Steady rest (20~200mm)
    Coolant through tool device
