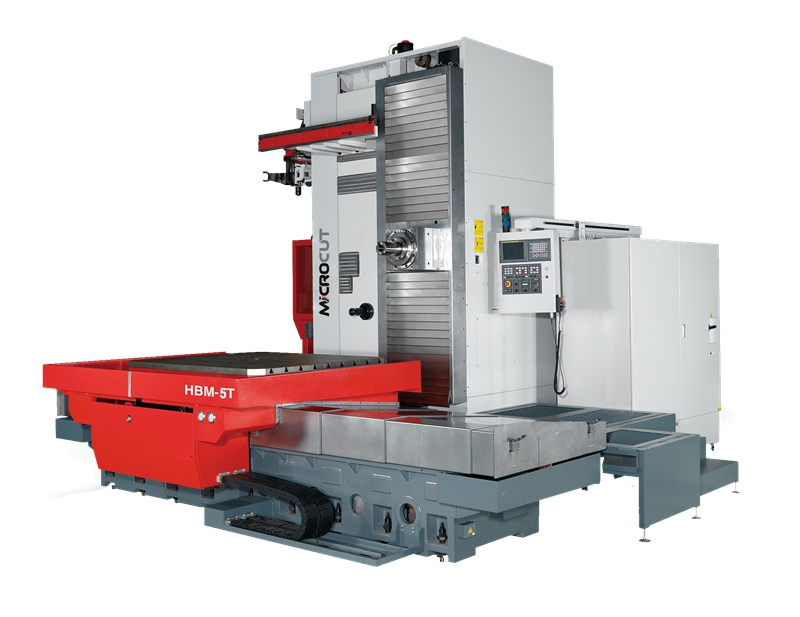

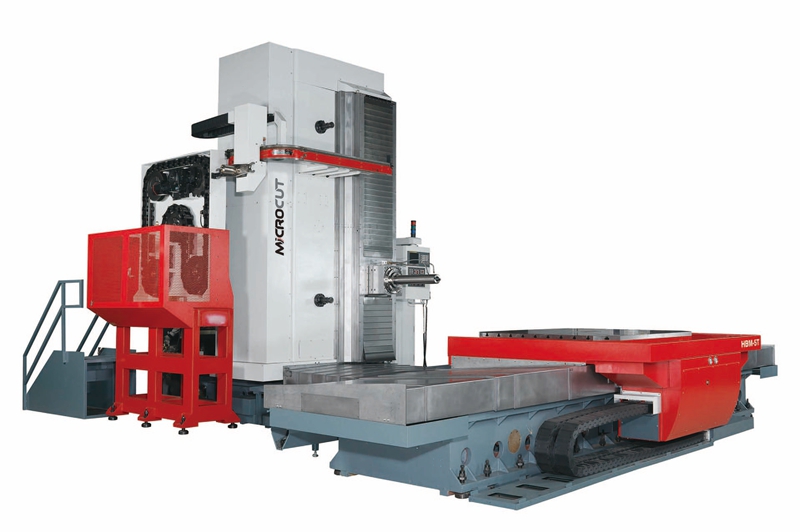

Microcut HBM-5T Horizontal Boring and Milling Center

Short Description:

HBM-5T travelling column boring and milling center with powerful gear box driven spindle dia. 130 mm provides high-speed with excellent power and torque. The machine’s flexibility makes it useful for a variety of workpieces with loading capacity up to 20000kgs. The machine can be equipped with a wide selection of technological accessories that significantly expands the usability of it. Either Fanuc, Heidenhain or Siemens controls can be selected.

  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags

    J-Zphoto 011


    HBM-5T 2

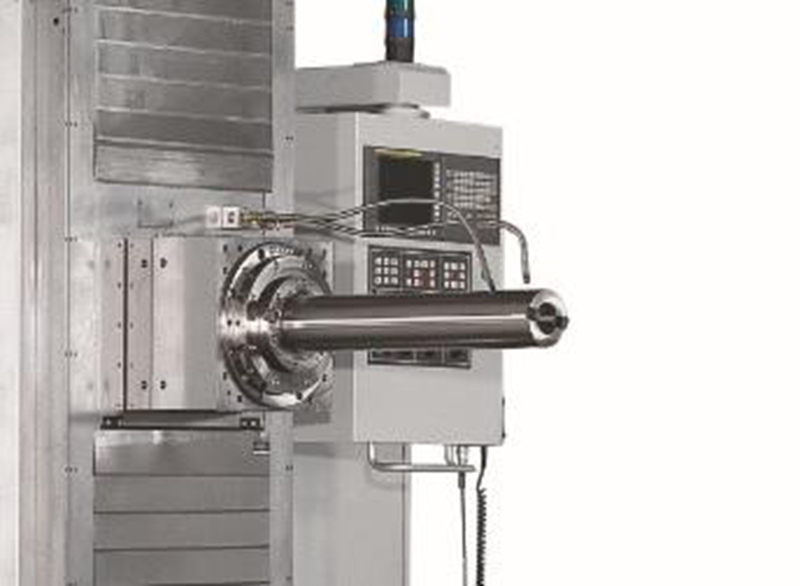

    1. Column moving bore providing 130mm diameter ISO50 spindle taper
    2. Extremely large working capacity with fixed Ram head.


     X axis table cross travel mm 3500 (std); 4500/5500 (opt)
     Y axis headstock vertical mm 2600
     Z axis column long travel mm 1400/2000
     Quill diameter) mm 130
     W axis (quill) travel mm 700
     Spindle power kW 37/45 (std)
     Max. spindle speed rpm 35-3000
     Spindle torque Nm 1942/2362 (std)
     Spindle gear range 2 step (1:1 / 1:5.5)
     Table size mm 1800 x 2200
     Rotary table indexing degree degree 0.001°
     Table rotation speed rpm 1.5
     Max. table loading capacity kg 15000 (std) / 20000 (opt)
     Rapid feed (X/Y/Z/W) m/min 10/10/10/8
     ATC tool number 60
     Machine weight kg 49000(std); 51500/54500(opt)

    Standard accessories:

    Spindle and servo motor package
    Large fully ground work table with 11 T-slots
    Precision ground ball screw
    Heavily ribbed cast iron components
    Telescopic way cover
    Automatic central lubrication
    Coolant system
    Chip drawers
    Telescopic way covers

    Optional parts:
    Universal head
    Right angle milling head
    Spindle extension sleeve
    Coolant Through Spindle Device
    User operation station
    Table guard for CTS function
    Oil skimmer
    Angular block
    Chip conveyor
    Air conditioner for electric cabinet
    Safety module
    Lifting device
