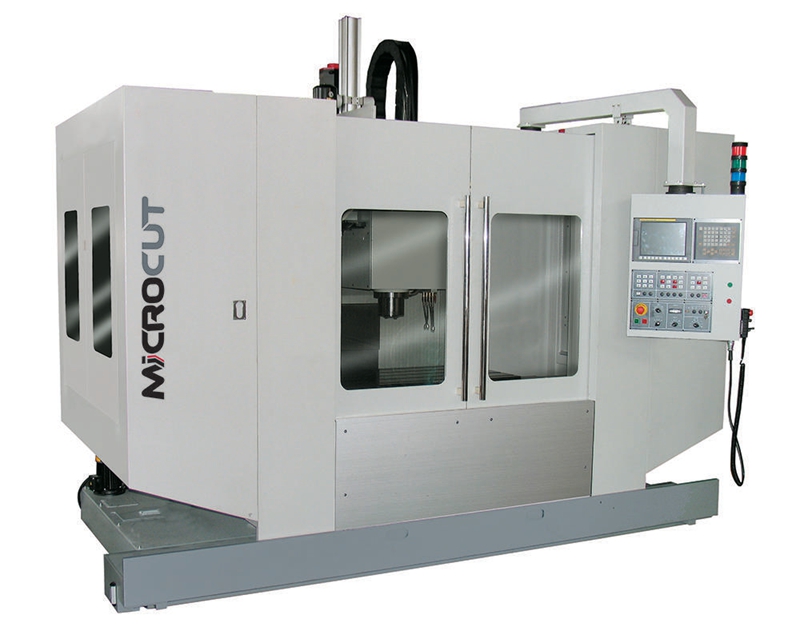

Microcut VMC-1600F Vertical Machining Center

Short Description:

VMC-1600F is the vertical machining center which is based on an effective principle of delivering customer value with low investment costs with large milling capacity. Axis travels are X/Y/Z 1600/800/710 mm. ISO 40 10000-rpm belt driven spindle or ISO 50 6000 rpm geared head are available. 4th axis preparation is optional.

  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags

    1300 1

    1300 2

    Axis travels are X/Y/Z 1600/800/710mm


     Table size mm 1800×800
     Max. table load kg 2000
     X axis travel mm 1600
     Y axis travel mm 800
     Z axis travel mm 710

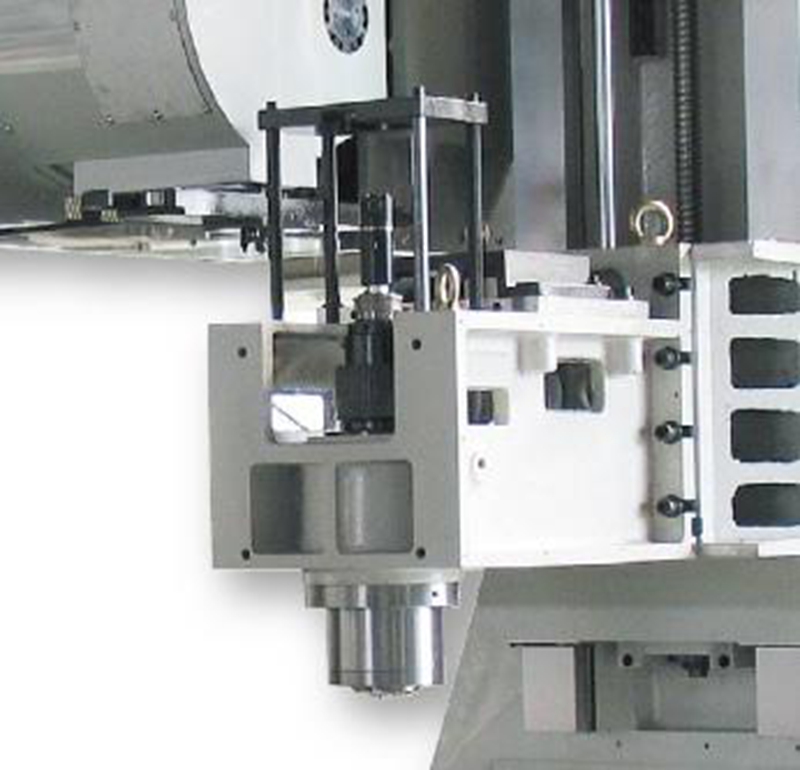

     Spindle taper (std / opt) ISO ISO 40 ISO 50
     Spindle speed (std / opt) rpm 10000 (belt) 6000 (gear box)
     Motor output kW Fagor:15/22 Fagor:18.5/26
    Fanuc:15/18.5 Fanuc:18.5/22
    Siemens:15/22.5 Siemens:18.5/27.75
    Heidenhain:15/25 Heidenhain:20/30
     Rapid feed rate (X/Y/Z) m/min 24/24/24
     ATC Tool 24(std.) / 32(opt.) arm type
     Machine weight kg 10000 11000
