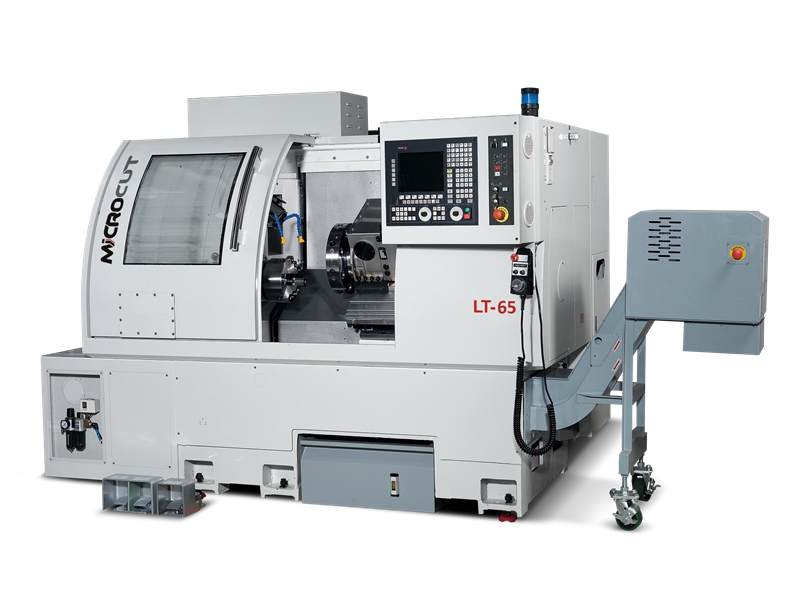

Microcut LT-65 Horizontal Turning Machines
Features:

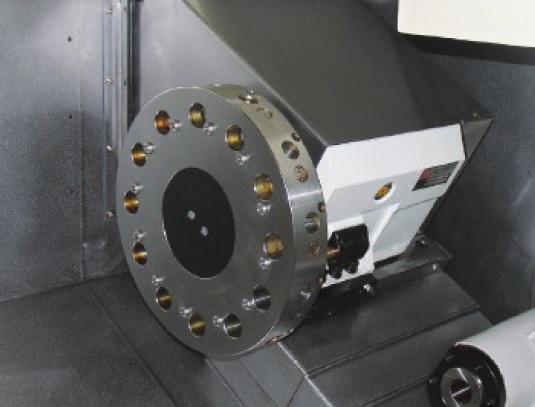

Fast turret with bi-directional 12 or 8 station provides quick rotation time of 0.79 second (incl. unclamp/index/clamp) to adjacent station
Specification:
| ITEM | UNIT | LT-65 |
| Max. cutting dia. | mm | 210 |
| Max. cutting length (with turret) | mm | 460 |
| X axis travel | mm | 215 |
| Z axis travel | mm | 520 |
| Spindle speed | rpm | 4000 |
| Bar capacity | mm | 65 |
| Chuck size | mm | 215 |
| Rapid feed (X&Z) | m/min | 30/30 |
| Main motor | kW | Fagor:7.5/11; Fanuc:11/15; |
| Siemens 802Dsl:12/16; | ||
| Siemens 828D:12/18 | ||
| Machine weight | kg | 3070 |
Standard accessories:
Ø75mm spindle bore
Heat exchanger
Optional parts:
C-axis
Chip conveyor
Hydraulic tailstock
8 or 12 stations hydraulic turret, regular type
8 or 12 stations VDI-30 turret
8 or 12 stations VDI-40 turret
8 or 12 stations power turret
Tool holder set
Hydraulic 3-jaw chuck(6″/8″)
Hydraulic collet chuck
Automatic tool setter
Semi-automatic tool setter
Coolant through tool system (20 bar)
Air conditioner for electric cabinet
Oil skimmer
Spindle sleeve
Automatic parts catcher
Bar feeder
