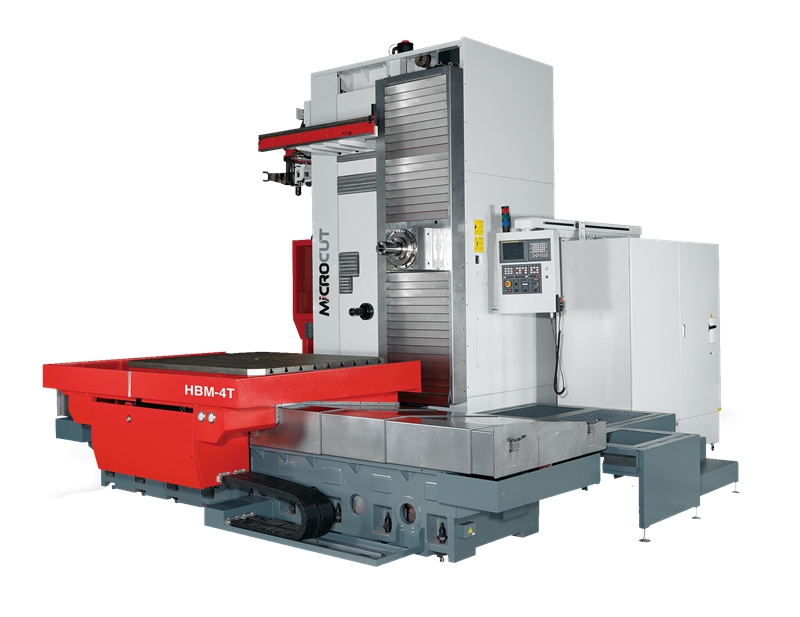

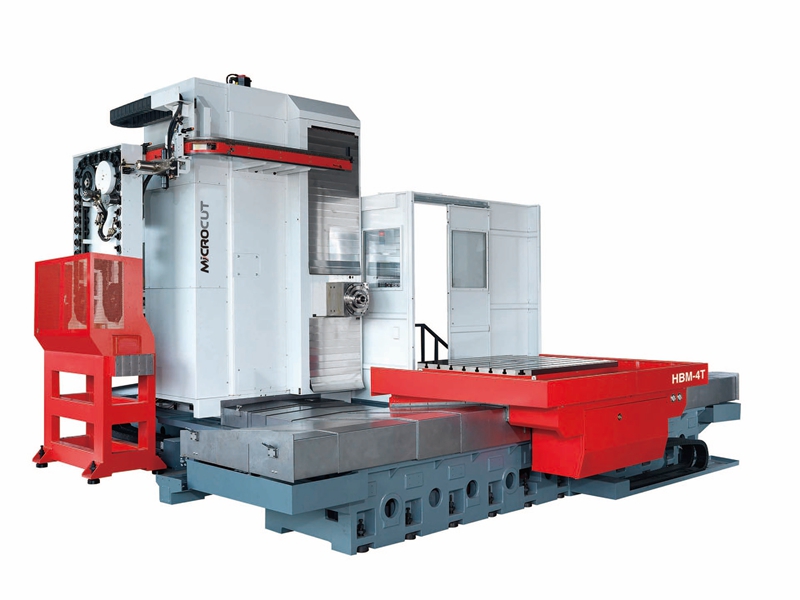

HBM-4T Horizontal Boring and Milling Center

Short Description:

HBM-4T travelling column boring and milling center with powerful gear box driven spindle dia. 130 mm provides high speed with excellent power and torque. The machine’s flexibility makes it useful for a variety of workpieces with loading capacity up to 10000kgs. The machine can be equipped with a wide selection of technological accessories that significantly expands the usability of it. Either Fanuc, Heidenhain or Siemens controls can be selected


  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags

    EXPHOTO 038


    HBM-4T 2

    1. 0.001 degree high indexing accuracy rotary table.
    2. Extremely large working capacity with fixed Ram head.


     X axis table cross travel mm 2000(std); 3000(opt)
     Y axis headstock vertical mm 2000
     Z axis column long travel mm 1400(std); 2000(opt)
     Quill diameter mm 130
     W axis (quill) travel mm 700
     Spindle power kW 22/30(std)
     Max. spindle speed rpm 35-3000
     Spindle torque Nm 3002/4093(std)
     Spindle gear range 2 step (1:1 / 1:5.5)
     Table size mm 1400 x 1600(std) / 1600 x 1800(opt)
     Rotary table indexing degree degree 0.001°
     Table rotation speed rpm 1.5
     Max. table loading capacity kg 8000(std) / 10000(opt)
     Rapid feed (X/Y/Z/W) m/min 10/10/10/8
     ATC tool number 60
     Machine weight kg 40000

    Standard accessories:
    Spindle and servo motor package

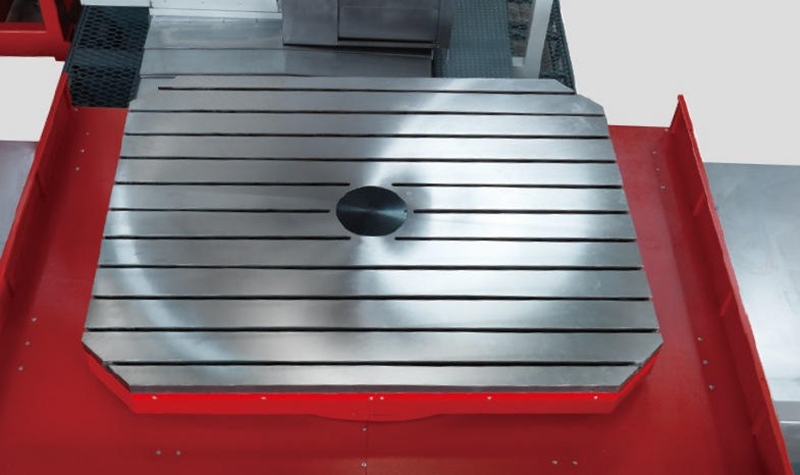

    Large fully ground work table with 9 T-slots
    Precision ground ball screw
    Heavily ribbed cast iron components
    Telescopic way cover
    Automatic central lubrication
    Coolant system
    Chip drawers/conveyor
    Telescopic way covers
    Heat exchanger


    Optional parts:
    Universal head
    Right angle milling head
    Spindle extension sleeve
    Coolant Through Spindle Device
    Operator protection guarding
    Table guard for CTS function
    Oil skimmer
    Angular block
    Chip conveyor
    Air conditioner for electric cabinet
    Facing head
    Lifting device
