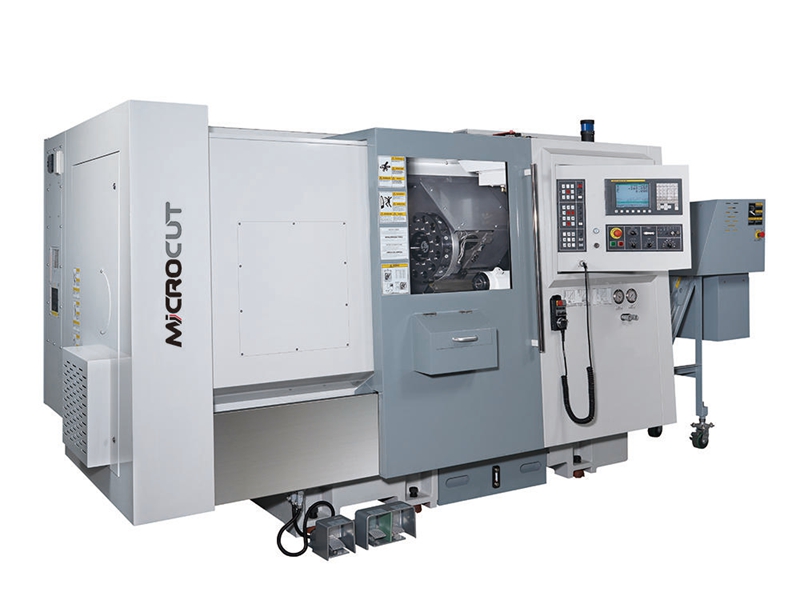

Microcut LT-52 Horizontal Turning Machines

Short Description:

Slant-bed lathe, LT-52′s high-speed and high productivity is achieved by rigid one-piece casting bed and linear guide ways. Heavy duty cutting is guaranteed with a 11/15kW high powered spindle motor. C-axis milling function is available on request.

  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags




    EXPHOTO 263


    Fast turret with bi-directional 12 or 8 station provides quick rotation time of 0.79 second (incl. unclamp/index/clamp) to adjacent station


     Max. cutting dia. mm 210
     Max. cutting length (with turret) mm 460
     X axis travel mm 215
     Z axis travel mm 520
     Spindle speed rpm 5000
     Bar capacity mm 52(A2-6)
     Chuck size mm 210
     Rapid feed (X&Z) m/min 30 / 30
     Main motor kW Fagor:7.5/11;  Fanuc:11/15;
    Siemens 802Dsl:12/16;
    Siemens 828D:12/18
     Machine weight kg 3040

    Standard accessories:
    Ø62mm spindle bore
    Heat exchanger

    Optional parts:
    Chip conveyor
    Hydraulic tailstock
    8 or 12 stations hydraulic turret, regular type
    8 or 12 stations VDI-30 turret
    8 or 12 stations VDI-40 turret
    8 or 12 stations power turret
    Tool holder set

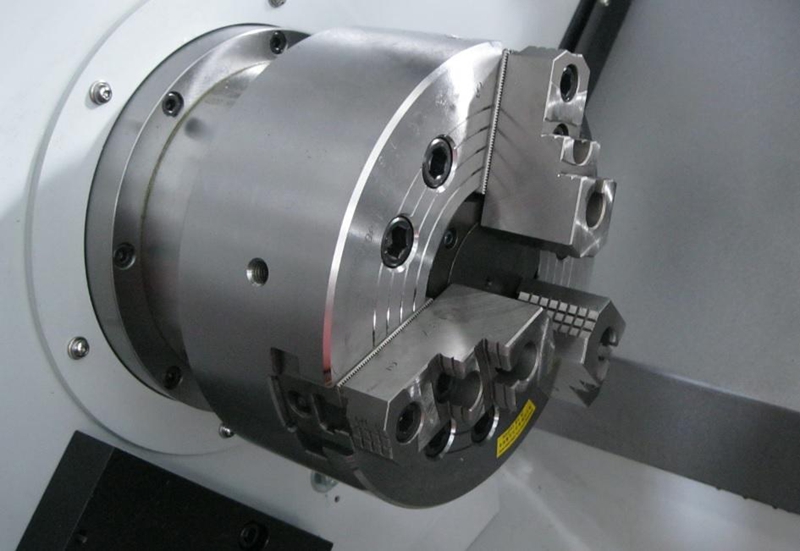

    Hydraulic 3-jaw chuck(6″/8″)
    Hydraulic collet chuck
    Semi-automatic tool setter
    Coolant through tool system (20 bar)
    Air conditioner for electric cabinet
    Oil skimmer
    Spindle sleeve
