AXILE DC12 Double-Column Type VMC Rigid Structure for Heavy, Precise Cuts

Short Description:

The DC12 is the most robust VMC in AXILE’s arsenal, perfectly suited for handling larger, lengthy workpieces. With a maximum table loading weight of 2.5 tonnes and maximum diameter of 2,200 mm X 1,200 mm, the DC12 takes on the larger, heavier parts common in the aerospace, power generation, and die and mold industries. Its double-column bridge construction allows for greater rigidity, as well as greater control over thermal deformation. As a result, the D12 is capable of deep cuts and complex contouring while maintaining utmost precision.

With larger workpieces come more chips, meaning the DC12 features excellent chip removal efficiency, to prolong tool life and ensure no residual interference. Therefore, the DC12 delivers the high surface quality expected by leading manufacturers.

  • FOB Price: Check with sales please.
  • Supply Ability: 10 units per Month
  • Product Detail

    Product Tags

    Swiveling high-performance spindle ideal for complex part features

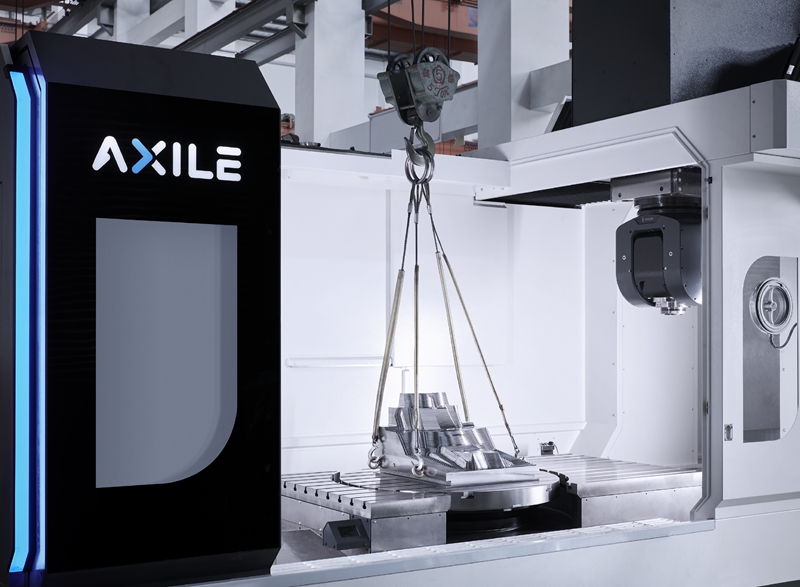

    Integrated roof with overhead crane for easy loading
    Easy access to work area for ergonomic workpiece preparation and supervision
    Clear visibility to monitor machining process
    Bridge structure design means tougher rigidity for handling larger, heavier







    Rotary table diameter: 1,200 mm
    Max table load: 2,500 kg
    Max X, Y, Z axis travel: 2,200, 1,400, 1,000 mm
    Spindle speed: 20,000 rpm (Standard) or 16,000 rpm (Option)
    Compatible CNC controllers: Fanuc, Heidenhain, Siemens

    Standard accessories:

    Built-in transmission spindle with CTS
    ATC System
    ATC 90T (Standard)
    ATC 120T (Optional)
    Cooling System
    Air conditioner for electrical cabinet
    Water chiller for table and spindle
    Coolant Wash-Down and Filtration
    CTS coolant tank with paper filter and high pressure coolant pump — 40 bar
    Coolant gun
    Chip conveyor (chain type)
    Equipment and Component
    Workpiece probe
    Laser tool setter
    Smart tool panel
    Measuring System
    3 axes linear scales
