Taiwan quality Chinese price MV855 Machine Center

Short Description:

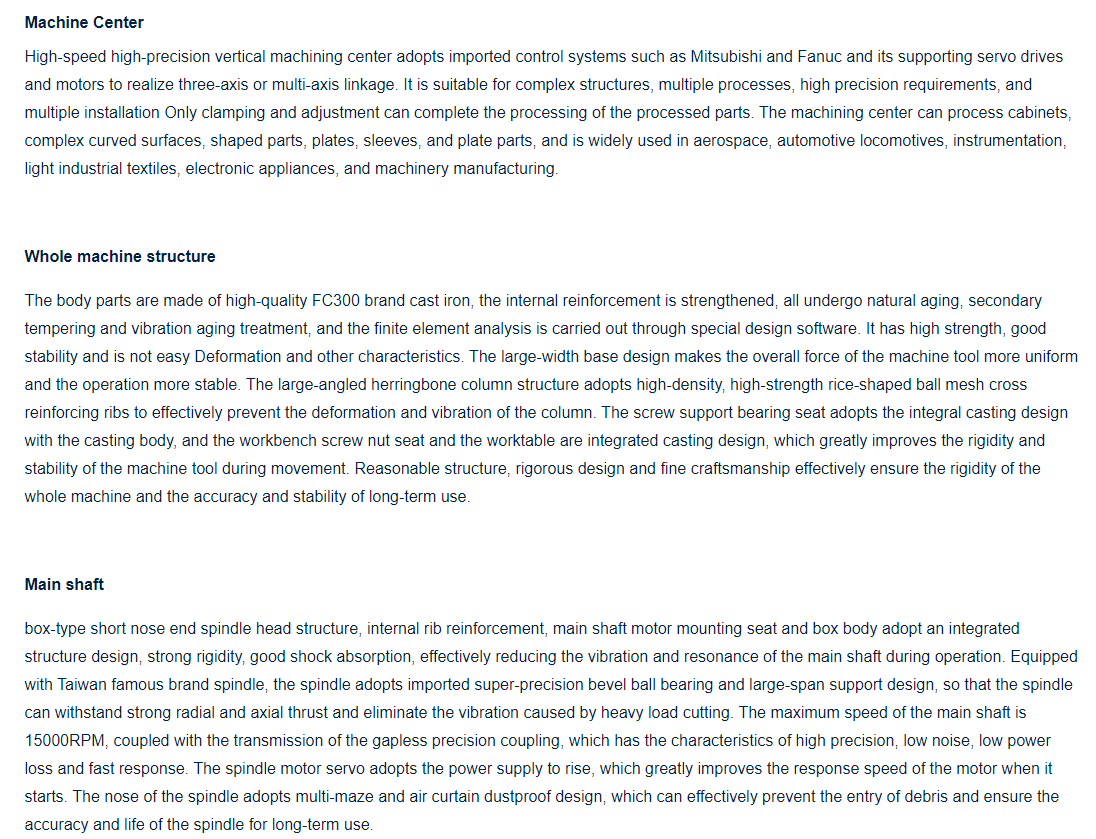

High-speed high-precision vertical machining center adopts imported control systems such as Mitsubishi and Fanuc and its supporting servo drives and motors to realize three-axis or multi-axis linkage. It is suitable for complex structures, multiple processes, high precision requirements, and multiple installation Only clamping and adjustment can complete the processing of the processed parts. The machining center can process cabinets, complex curved surfaces, shaped parts, plates, sleeves, and plate parts, and is widely used in aerospace, automotive locomotives, instrumentation, light industrial textiles, electronic appliances, and machinery manufacturing.


Product Detail

Product Tags

Processing size

Model Unit MV 855
Work table
Table size mm(inch) 1000×500(40×20)
T—solts size( solt number x widthx distance) mm(inch) 5×18×110(0.2×0.7×4.4)
Maximum load Kg(lbs) 500(1102.3)
Travel
X-axis travel mm(inch) 800(32)
Y—axis travel mm(inch) 500(20)
Z—axis travel mm(inch) 550(22)
Distance from Spindle nose to table mm(inch) 130-680(5.2-27.2)
Distance from spindle center to column surface mm(inch) 525(21)
Spindle
Spindle taper type BT40
Spindle Speeds r.p.m 10000/12000/15000
Drive type Belt-tvpe/Directly coupled/Directlv coupled
Feed rate
Cutting feed rate m/min(inch/min) 10(393.7)
Rapid on (X/Y/Z) axes m/min(inch/min) 48/48/48
(X/Y/Z) fast moving speed m/min(inch/min) 1889.8/1889.8/1889.8
Automatic tool changing system
Tool Type type BT40
Tool capacity set Arm 24T
Maximum tool diameter m(inch) 80(3.1)
Maximum tool length m(inch) 300(11.8)
Maximum tool weight kg(lbs) 7(15.4)
Tool to tool change sec 3
Motor
Spindle drive motor
Contimious operation / 30 min rated
(kw/hp) MITSUBISH
5.5/7.5
(7.4/10.1)
Servo drive motor X, Y, Z axis (kw/hp) 2.0/2.0/3.0
(2.7/2.7/4)
Machine floor space and weight
Floor space mm(inch) 3400×2200×2800
(106.3×94.5×110.2)
Weight kg(lbs) 5000(11023.1)
Machine Center

Transmission parts

German FAG, Japanese NSK precision bearings, Taiwan Intime or Shanghai Yin high-quality precision ball screws. The pre-stretching process is used to install the ball screw, which improves the rigidity of the transmission components and eliminates the elongation of the ball screw due to thermal stress during the temperature rise of the ball screw during operation.



Guide rails

The three axes adopt high-precision, high-speed, and high-load roller linear slide rails. The sliders are designed with longer and larger models to ensure static and dynamic accuracy, accuracy stability, and service life. The three axes all increase the guide rail span to maintain excellent dynamic and static accuracy during cutting. The Z axis adopts a design with no large torque and high power motor, which improves the mechanical response performance of the Z axis;



Lubrication

The lubricating oil circuit adopts a built-in design, and the guide rail and ball screw adopt a centralized automatic lubrication system, which can regularly and quantitatively inject oil into each lubricating part to ensure uniform lubrication of each moving surface, effectively reducing friction resistance and improving motion accuracy Ensure the service life of the guide rail and ball screw.



Machine tool protection

The machine tool is fully enclosed to ensure the personal safety of the workers during the process, and the coolant and iron filings during the process are safely and fully recovered to ensure a clean and tidy workplace. The machine tool guide rail adopts Taiwan stainless steel telescopic protective cover, which has the characteristics of good protection performance and long service life. It can effectively prevent iron filings and coolant from entering the machine tool and damage the guide rail and screw. The electric control box adopts a fully sealed design, and the heat exchanger performs heat dissipation, ensuring the cleanness of the electric control box and the service life of electrical components.

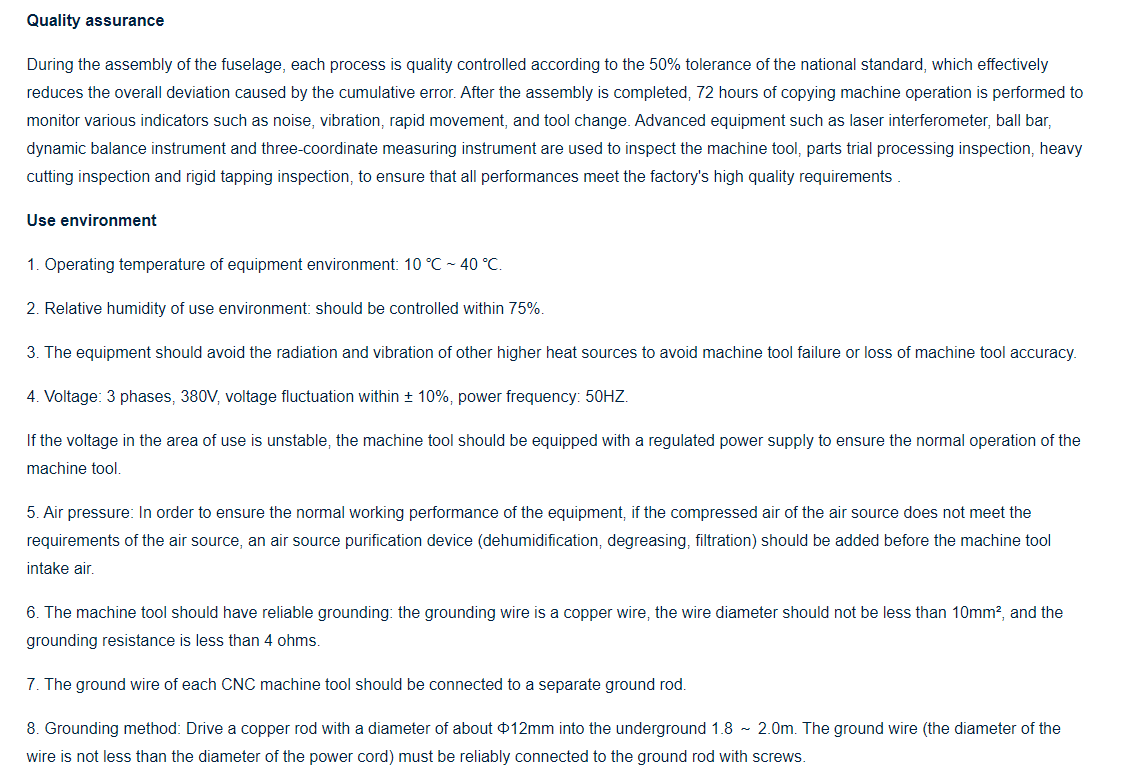

Quality assurance
