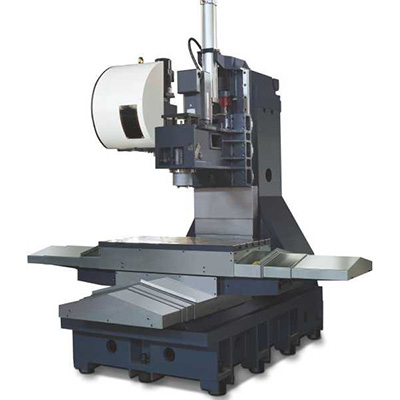

HV Series CNC Milling machine two track and one hard track

Short Description:

Through strict analysis of PEM finite elements, the machine body structure is strengthened, showing super cutting performance and processing stability, and meeting the strict requirements of various processing. The height of the column increases the processing range.


Product Detail

Product Tags

Model Unit HV-855 HV-966 HV-1165 HV-1370
Travel
X axis travel mm 800 900 1100 1300
Y axis travel mm 500 600 650 700
Z axis travel mm 550 600 600 700
Distance from spindle end to worktable mm 200-750 150-750 130-730 150-850
Distance from spindle center to column mm 700 750 770 850
Worktable
Worktable size mm 1000x510 1000x550 1200x660 1400x700
Maximum load kg 450 700 800 1000
T-slot mm 18x5 18x5 18x5 18x5
Feed
X Y axis rapid feed m/min 36 36 24 24
Z axis rapid feed m/min 36 36 24 24
Spindle
Spindle speed r.p.m 12000 10000 10000 10000
Spindle drive mode   Direct Direct Belt Belt

Floor area (length X width) mm 2800x2700 2800x2700 3060x2700 3360x2800
Machine height mm 2800 2800 3100 2970
Machine weight T 6.5 6.5 75 9

CHARACTERISTICS

• Through strict analysis of PEM finite elements, the machine body structure is strengthened, showing super cutting performance and processing stability, and meeting the strict requirements of various processing.

• The height of the column increases the processing range.

• Choose FC3OO cast iron material, low melting point, small shrinkage during solidification, compressive strength and hardness close to carbon steel, good shock absorption, ensuring quality.

• Tempering treatment: Eliminate internal stress and keep the castings stable and not deformed for a long time.

• Using advanced castings, box structure, W reinforcement ribs and P-shaped ribs design.

HV heavy processing

Save time and cost

• Using heavy 45mm track

• Z axis adopts 6 sliders

• Machines and equipment have large cutting power

• Speed up the original processing time

• Reduce labor cost

• Reduce the cost of electricity and time

• Reduce the cost of processing materials

• Reduce the waiting time of the workpiece process

• Reduce overall processing time

• Reduce handling costs

Faster and easier to achieve shortened delivery time High-precision processed products, bringing you a high return on investment

HV
